IfcIndexedPolygonalFaceWithVoids

Natural language names
Indexed Polygonal Face With Voids
Change log
ItemSPFXMLChangeDescription
IFC4 Addendum 2 4.0.2.0
    IfcIndexedPolygonalFaceWithVoidsADDED
IFC4 Addendum 2 4.0.2.0
    IfcIndexedPolygonalFaceWithVoidsADDED
Semantic definitions at the entity
Entity definition

The IfcIndexedPolygonalFaceWithVoids is a compact representation of a planar face with inner loops, being part of a face set.

HISTORY  New entity in IFC4 Addendum 2.

Attribute definitions
#AttributeTypeCardinalityDescription G
2InnerCoordIndicesIfcPositiveIntegerL[1:?] L[3:?] Two-dimensional list, where the first dimension represents each inner loop (from 1 to N) and the second dimension the indices to three or more points that define the vertices of each inner loop. If the tessellated face set is closed, indicated by SELF\IfcTessellatedFaceSet.Closed, then the points, defining the inner loops, shall connect clockwise, as seen from the outside of the body.
NOTE  The coordinates of the vertices are provided by the indexed list of SELF\IfcTessellatedFaceSet.Coordinates.CoordList. If the SELF\IfcTessellatedFaceSet.PnIndex is provided, the indices point into it, otherwise directly into the IfcCartesianPointList3D.
X
Inherited definitions from supertypes

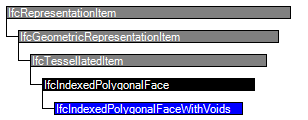

Entity inheritance IfcIndexedPolygonalFace IfcTessellatedItem IfcGeometricRepresentationItem IfcRepresentationItem
Attribute inheritance
#AttributeTypeCardinalityDescriptionG
IfcRepresentationItem
LayerAssignmentIfcPresentationLayerAssignment
@AssignedItems
S[0:1]Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items.
IFC2x3 CHANGE  The inverse attribute LayerAssignments has been added.
IFC4 CHANGE  The inverse attribute LayerAssignment has been restricted to max 1. Upward compatibility for file based exchange is guaranteed.
X
StyledByItemIfcStyledItem
@Item
S[0:1]Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve.
IFC2x3 CHANGE  The inverse attribute StyledByItem has been added.
X
IfcGeometricRepresentationItem
IfcTessellatedItem
IfcIndexedPolygonalFace
1CoordIndexIfcPositiveIntegerL[3:?] One-dimensional list with the indices for the three or more points, that define the vertices of the outer loop. If the tessellated face set is closed, indicated by SELF\IfcTessellatedFaceSet.Closed, then the points, defining the outer loop, shall connect counter clockwise, as seen from the outside of the body, so that the resulting normal will point outwards.
NOTE  The coordinates of the vertices are provided by the indexed list of SELF\IfcTessellatedFaceSet.Coordinates.CoordList. If the SELF\IfcTessellatedFaceSet.PnIndex is provided, the indices point into it, otherwise directly into the IfcCartesianPointList3D.
X
ToFaceSetIfcPolygonalFaceSet
@Faces
S[1:?]Reference to the IfcPolygonalFaceSet for which this face is associated. X
IfcIndexedPolygonalFaceWithVoids
2InnerCoordIndicesIfcPositiveIntegerL[1:?] L[3:?] Two-dimensional list, where the first dimension represents each inner loop (from 1 to N) and the second dimension the indices to three or more points that define the vertices of each inner loop. If the tessellated face set is closed, indicated by SELF\IfcTessellatedFaceSet.Closed, then the points, defining the inner loops, shall connect clockwise, as seen from the outside of the body.
NOTE  The coordinates of the vertices are provided by the indexed list of SELF\IfcTessellatedFaceSet.Coordinates.CoordList. If the SELF\IfcTessellatedFaceSet.PnIndex is provided, the indices point into it, otherwise directly into the IfcCartesianPointList3D.
X
Formal representations
XML Specification
 <xs:element name="IfcIndexedPolygonalFaceWithVoids" type="ifc:IfcIndexedPolygonalFaceWithVoids" substitutionGroup="ifc:IfcIndexedPolygonalFace" nillable="true"/>
 <xs:complexType name="IfcIndexedPolygonalFaceWithVoids">
  <xs:complexContent>
   <xs:extension base="ifc:IfcIndexedPolygonalFace">
    <xs:sequence>
     <xs:element name="InnerCoordIndices" minOccurs="0">
      <xs:complexType>
       <xs:sequence>
        <xs:element name="Seq-IfcPositiveInteger-wrapper" type="ifc:Seq-IfcPositiveInteger" maxOccurs="unbounded" />
       </xs:sequence>
      </xs:complexType>
     </xs:element>
    </xs:sequence>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcIndexedPolygonalFaceWithVoids
 SUBTYPE OF (IfcIndexedPolygonalFace);
  InnerCoordIndices : LIST [1:?] OF LIST [3:?] OF UNIQUE IfcPositiveInteger;
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
