IfcBoundedCurve

Natural language names
Begrenzte Kurve
Bounded Curve
Courbe englobée
Semantic definitions at the entity
Entity definition

An IfcBoundedCurve is a curve of finite length.

NOTE  Definition according to ISO/CD 10303-42:1992
A bounded curve is a curve of finite arc length with identifiable end points.

NOTE  Entity adapted from bounded_curve defined in ISO10303-42.

HISTORY  New entity in IFC1.0

Informal Propositions:

  1. A bounded curve has finite arc length.
  2. A bounded curve has a start point and an end point.
Attribute definitions
#AttributeTypeCardinalityDescription G
PositioningElementIfcLinearPositioningElement
@Axis
? S[0:1]X
Inherited definitions from supertypes

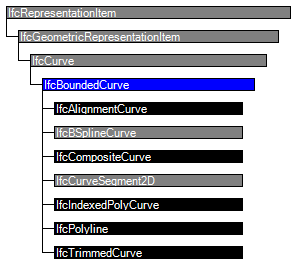

Entity inheritance IfcAlignmentCurve IfcBSplineCurve IfcCompositeCurve IfcCurveSegment2D IfcIndexedPolyCurve IfcPolyline IfcTrimmedCurve IfcCurve IfcGeometricRepresentationItem IfcRepresentationItem
Attribute inheritance
#AttributeTypeCardinalityDescriptionG
IfcRepresentationItem
LayerAssignmentIfcPresentationLayerAssignment
@AssignedItems
S[0:1]Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items.
IFC2x3 CHANGE  The inverse attribute LayerAssignments has been added.
IFC4 CHANGE  The inverse attribute LayerAssignment has been restricted to max 1. Upward compatibility for file based exchange is guaranteed.
X
StyledByItemIfcStyledItem
@Item
S[0:1]Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve.
IFC2x3 CHANGE  The inverse attribute StyledByItem has been added.
X
IfcGeometricRepresentationItem
IfcCurve
Dim
:=IfcCurveDim(SELF)
IfcDimensionCountThe space dimensionality of this abstract class, defined differently for all subtypes, i.e. for IfcLine, IfcConic and IfcBoundedCurve. X
IfcBoundedCurve
PositioningElementIfcLinearPositioningElement
@Axis
? S[0:1]X
Formal representations
XML Specification
 <xs:element name="IfcBoundedCurve" type="ifc:IfcBoundedCurve" abstract="true" substitutionGroup="ifc:IfcCurve" nillable="true"/>
 <xs:complexType name="IfcBoundedCurve" abstract="true">
  <xs:complexContent>
   <xs:extension base="ifc:IfcCurve"/>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcBoundedCurve
 ABSTRACT SUPERTYPE OF(ONEOF(IfcAlignmentCurve, IfcBSplineCurve, IfcCompositeCurve, IfcCurveSegment2D, IfcIndexedPolyCurve, IfcPolyline, IfcTrimmedCurve))
 SUBTYPE OF (IfcCurve);
 INVERSE
  PositioningElement : SET [0:1] OF IfcLinearPositioningElement FOR Axis;
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram

References  References: IfcCurveOrEdgeCurve IfcPolygonalBoundedHalfSpace IfcArbitraryOpenProfileDef

Link to this page  Link to this page
