IfcCylindricalSurface

Natural language names
Zylindrische Fläche
Cylindrical Surface
Surface cylindrique
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4 4.0.0.0
    IfcCylindricalSurfaceADDED
IFC2x3 to IFC4 4.0.0.0
    IfcCylindricalSurfaceADDED
Semantic definitions at the entity
Entity definition

The cylindrical surface is a surface unbounded in the direction of z. Bounded cylindrical surfaces are defined by using a subtype of IfcBoundedSurface with BasisSurface being a cylindrical surface.

NOTE 1  A bounded cylindrical surface can be defined by an IfcRectangularTrimmedSurface with BasisSurface being the cylindrical surface and U1 = 0°, U2 = 360° and V1 = lower bound in z, V2 = upper bound in z (if the plane angle measure is degree). A bounded cylindrical arc surface is provided with |U1 - U2| < 360° (assuming the Usense and Vsense agree to the sense of the basis surface).

NOTE 2  A non-rectangular bounded cylindrical surface, e.g. the surface of a round wall underneath a sloped roof, cab be defined by an IfcCurveBoundedSurface with IfcBoundaryCurve's, being a collection of p-curve segments. A p-curve is curve which lies on the basis of a surface and is defined in the parameter space of that surface.

The inherited attributes are interpreted as

NOTE Definition according to ISO/CD 10303-42:1992
A cylindrical surface is a surface at a constant distance (the radius) from a straight line. A cylindrical surface is defined by its radius and its orientation and location. The data is to be interpreted as follows:

C = Position.Location x = Position.P[1] y = Position.P[2] z = Position.P[3] R = Radius

and the surface is parameterized as:

formula where the parametric range is -∞ < u,v < ∞ .

In the above parameterization the length unit for the unit vectors z is equal to that of the radius R. In the placement coordinate system defined above, the surface is represented by the equation S = 0, where

formula The positive direction of the normal to the surface at any point on the surface is given by

formula, or as unit normal by

formula

The direction of the normal is away from the axis of the cylinder.

NOTE  Entity adapted from cylindrical_surface defined in ISO 10303-42.

HISTORY  New entity in IFC4.

Attribute definitions
#AttributeTypeCardinalityDescription G
2RadiusIfcPositiveLengthMeasure The radius of the cylindrical surface. X
Inherited definitions from supertypes

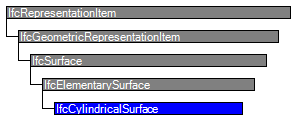

Entity inheritance IfcElementarySurface IfcSurface IfcGeometricRepresentationItem IfcRepresentationItem
Attribute inheritance
#AttributeTypeCardinalityDescriptionG
IfcRepresentationItem
LayerAssignmentIfcPresentationLayerAssignment
@AssignedItems
S[0:1]Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items.
IFC2x3 CHANGE  The inverse attribute LayerAssignments has been added.
IFC4 CHANGE  The inverse attribute LayerAssignment has been restricted to max 1. Upward compatibility for file based exchange is guaranteed.
X
StyledByItemIfcStyledItem
@Item
S[0:1]Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve.
IFC2x3 CHANGE  The inverse attribute StyledByItem has been added.
X
IfcGeometricRepresentationItem
IfcSurface
Dim
:=3
IfcDimensionCountThe space dimensionality of IfcSurface. It is always a three-dimensional geometric representation item.
IFC4 CHANGE Derived attribute promoted from subtypes.
X
IfcElementarySurface
1PositionIfcAxis2Placement3D The position and orientation of the surface. This attribute is used in the definition of the parameterization of the surface. X
IfcCylindricalSurface
2RadiusIfcPositiveLengthMeasure The radius of the cylindrical surface. X
Formal representations
XML Specification
 <xs:element name="IfcCylindricalSurface" type="ifc:IfcCylindricalSurface" substitutionGroup="ifc:IfcElementarySurface" nillable="true"/>
 <xs:complexType name="IfcCylindricalSurface">
  <xs:complexContent>
   <xs:extension base="ifc:IfcElementarySurface">
    <xs:attribute name="Radius" type="ifc:IfcPositiveLengthMeasure" use="optional"/>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcCylindricalSurface
 SUBTYPE OF (IfcElementarySurface);
  Radius : IfcPositiveLengthMeasure;
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
