IfcModulusOfSubgradeReactionMeasure

Natural language names
Modulus Of Subgrade Reaction Measure
Semantic definitions at the type
Type definition

IfcModulusOfSubgradeReactionMeasure is a geotechnical measure describing interaction between foundation structures and the soil. May also be known as bedding measure.

Usually measured in N/m3.

Type: REAL

HISTORY  New type in IFC2x.

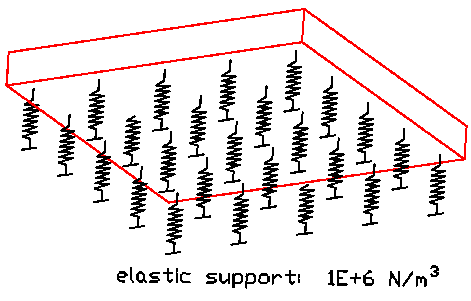

Figure 383 illustrates elastic support of a planar member.

"Modulus of subgrade reaction measure"

Figure 383 — Modulus of subgrade reaction measure

Formal representations
XML Specification
 <xs:simpleType name="IfcModulusOfSubgradeReactionMeasure">
  <xs:restriction base="xs:double"/>
 </xs:simpleType>
EXPRESS Specification
TYPE IfcModulusOfSubgradeReactionMeasure = REAL;
END_TYPE;

Link to EXPRESS-G diagram EXPRESS-G diagram

References  References: IfcDerivedMeasureValue IfcModulusOfSubgradeReactionSelect
