IfcHatchLineDistanceSelect

Natural language names
Hatch Line Distance Select
Sélection de la distance entre les lignes de hachure
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4 4.0.0.0
    IfcHatchLineDistanceSelect
      IfcVectorADDED
      IfcOneDirectionRepeatFactorXXDELETED
IFC2x3 to IFC4 4.0.0.0
    IfcHatchLineDistanceSelect
      IfcVectorADDED
      IfcOneDirectionRepeatFactorXXDELETED
Semantic definitions at the type
Type definition

The IfcHatchLineDistanceSelect is a selection between different ways to determine the distance and optionally the start point of hatch lines, either by an offset distance measure or by a vector.

The vector, if selected, acts as a one time repeat factor in the fill area style hatching for determining the origin of the repeated hatch line relative to the origin of the previous hatch line, Given the initial position of any hatch line, the one direction repeat factor determines two new positions according to the equation:

NOTE  Definition according to ISO 10303-46:

I + k * R    k ∈{-1,1}

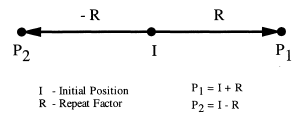

Figure 384 shows the use of a vector for hatch line distances

"IfcHatchLineDistanceSelect_Fig1.gif 3,8 KB"

Figure 384 — vector as one direction repeat factor

NOTE  Use of IfcVector as one time repeat factor is adapted from one_direction_repeat_factor defined in ISO10303-46

HISTORY  New select type in IFC2x3

Select definition
TypeDescription
IfcPositiveLengthMeasure
IfcVector
Formal representations
XML Specification
 <xs:group name="IfcHatchLineDistanceSelect">
  <xs:choice>
   <xs:element ref="ifc:IfcPositiveLengthMeasure-wrapper"/>
   <xs:element ref="ifc:IfcVector"/>
  </xs:choice>
 </xs:group>
EXPRESS Specification
TYPE IfcHatchLineDistanceSelect = SELECT (
 IfcPositiveLengthMeasure,
 IfcVector);
END_TYPE;

Link to EXPRESS-G diagram EXPRESS-G diagram

References  References: IfcFillAreaStyleHatching
