| Item | SPF | XML | Change | Description | IFC2x3 to IFC4 4.0.0.0 |
|---|---|---|---|---|
| IfcWorkSchedule | ||||
| OwnerHistory | MODIFIED | Instantiation changed to OPTIONAL. | ||
| Identification | X | MODIFIED | Name changed from Identifier to Identification. Instantiation changed to OPTIONAL. | |
| CreationDate | X | X | MODIFIED | Type changed from IfcDateTimeSelect to IfcDateTime. |
| Duration | X | X | MODIFIED | Type changed from IfcTimeMeasure to IfcDuration. |
| TotalFloat | X | X | MODIFIED | Type changed from IfcTimeMeasure to IfcDuration. |
| StartTime | X | X | MODIFIED | Type changed from IfcDateTimeSelect to IfcDateTime. |
| FinishTime | X | X | MODIFIED | Type changed from IfcDateTimeSelect to IfcDateTime. |
| PredefinedType | MODIFIED | Name changed from WorkControlType to PredefinedType. Type changed from IfcWorkControlTypeEnum to IfcWorkScheduleTypeEnum. | ||
| UserDefinedControlType | X | DELETED | IFC2x3 to IFC4 4.0.0.0 | |
| IfcWorkSchedule | ||||
| OwnerHistory | MODIFIED | Instantiation changed to OPTIONAL. | ||
| Identification | X | MODIFIED | Name changed from Identifier to Identification. Instantiation changed to OPTIONAL. | |
| CreationDate | X | X | MODIFIED | Type changed from IfcDateTimeSelect to IfcDateTime. |
| Duration | X | X | MODIFIED | Type changed from IfcTimeMeasure to IfcDuration. |
| TotalFloat | X | X | MODIFIED | Type changed from IfcTimeMeasure to IfcDuration. |
| StartTime | X | X | MODIFIED | Type changed from IfcDateTimeSelect to IfcDateTime. |
| FinishTime | X | X | MODIFIED | Type changed from IfcDateTimeSelect to IfcDateTime. |
| PredefinedType | MODIFIED | Name changed from WorkControlType to PredefinedType. Type changed from IfcWorkControlTypeEnum to IfcWorkScheduleTypeEnum. | ||
| UserDefinedControlType | X | DELETED |
An IfcWorkSchedule represents a task schedule of a work plan, which in turn can contain a set of schedules for different purposes.
HISTORY New entity in IFC2.0.
Declaration Use Definition
IfcWorkSchedule can reference a project (the single IfcProject instance) via IfcRelDeclares.

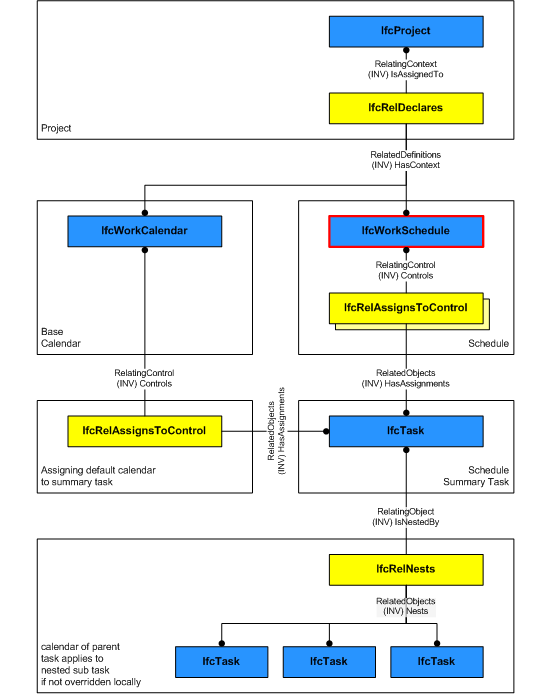

Figure 147 shows the backbone structure of a work schedule that defines (1) a context through IfcRelDeclares (not necessarily the project) and (2) controls tasks (typically the schedule summary task) and resources. Please note that a work calendar shall be assigned to the summary task and not the work schedule.
If an assigned IfcTask is a root-level task, such task must be declared on the IfcProject using the IfcRelDeclares relationship.
 |
Figure 147 — Work schedule relationships |

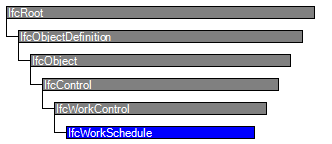

| # | Attribute | Type | Cardinality | Description | G |
|---|---|---|---|---|---|
| 14 | PredefinedType | IfcWorkScheduleTypeEnum | ? | Identifies the predefined types of a work schedule from which the type required may be set. | X |
| Rule | Description |
|---|---|
| CorrectPredefinedType | The attribute ObjectType must be asserted when the value of the IfcWorkScheduleTypeEnum is set to USERDEFINED. |
| # | Attribute | Type | Cardinality | Description | G |
|---|---|---|---|---|---|
| IfcRoot | |||||
| 1 | GlobalId | IfcGloballyUniqueId | Assignment of a globally unique identifier within the entire software world. | X | |
| 2 | OwnerHistory | IfcOwnerHistory | ? |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. IFC4 CHANGE The attribute has been changed to be OPTIONAL. | X |
| 3 | Name | IfcLabel | ? | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
| 4 | Description | IfcText | ? | Optional description, provided for exchanging informative comments. | X |
| IfcObjectDefinition | |||||
| HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
| Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition. | X | |
| IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).
IFC4 CHANGE The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition. | X | |
| HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IFC4 CHANGE The inverse attribute datatype has been added. | X | |
| IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).
IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates. | X | |
| Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates. | X | |
| HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
| IfcObject | |||||
| 5 | ObjectType | IfcLabel | ? | The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED. | X |
| IsDeclaredBy | IfcRelDefinesByObject @RelatedObjects | S[0:1] | Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE New inverse relationship, change made with upward compatibility for file based exchange. | X | |
| Declares | IfcRelDefinesByObject @RelatingObject | S[0:?] | Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE New inverse relationship, change made with upward compatibility for file based exchange. | X | |
| IsTypedBy | IfcRelDefinesByType @RelatedObjects | S[0:1] | Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.
IFC4 CHANGE New inverse relationship, the link to IfcRelDefinesByType had previously be included in the inverse relationship IfcRelDefines. Change made with upward compatibility for file based exchange. | X | |
| IsDefinedBy | IfcRelDefinesByProperties @RelatedObjects | S[0:?] | Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.
IFC4 CHANGE The data type has been changed from IfcRelDefines to IfcRelDefinesByProperties with upward compatibility for file based exchange. | X | |
| IfcControl | |||||
| 6 | Identification | IfcIdentifier | ? |
An identifying designation given to a control
It is the identifier at the occurrence level.
IFC4 CHANGE Attribute unified by promoting from various subtypes of IfcControl. | X |
| Controls | IfcRelAssignsToControl @RelatingControl | S[0:?] | Reference to the relationship that associates the control to the object(s) being controlled. | X | |
| IfcWorkControl | |||||
| 7 | CreationDate | IfcDateTime | The date that the plan is created. | X | |
| 8 | Creators | IfcPerson | ? S[1:?] | The authors of the work plan. | X |
| 9 | Purpose | IfcLabel | ? | A description of the purpose of the work schedule. | X |
| 10 | Duration | IfcDuration | ? | The total duration of the entire work schedule. | X |
| 11 | TotalFloat | IfcDuration | ? | The total time float of the entire work schedule. | X |
| 12 | StartTime | IfcDateTime | The start time of the schedule. | X | |
| 13 | FinishTime | IfcDateTime | ? | The finish time of the schedule. | X |
| IfcWorkSchedule | |||||
| 14 | PredefinedType | IfcWorkScheduleTypeEnum | ? | Identifies the predefined types of a work schedule from which the type required may be set. | X |
Property Sets
The Property Sets for Objects concept template applies to this entity as shown in Table 19.
Table 19 — IfcWorkSchedule Property Sets for Objects |
Document
The Document Association concept applies to this entity.
The documents of the IfcWorkSchedule can be referenced by the IfcRelAssociatesDocuments relationship.
Control Assignment
The Control Assignment concept applies to this entity.
An IfcWorkSchedule controls a set of tasks and resources defined through IfcRelAssignsToControl. Additionally, through the IfcWorkControl abstract supertype, the actors creating the schedule can be specified and schedule time information such as start time, finish time, and total float of the schedule can also be specified.
Nesting
The Object Nesting concept applies to this entity.
A work schedule can include other work schedules as sub-items through IfcRelNests relationship.
Aggregation
The Aggregation concept applies to this entity.
A work schedule can include other work schedules as sub-items. If not included in another work schedule it might be a part of a work plan (IfcWorkPlan) defined through IfcRelAggregates relationship.
Instance diagram
<?xml version="1.0" encoding="utf-8"?>
<ConceptRoot xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" uuid="79bd4966-cf25-4b9b-baa6-207179e11282" name="IfcWorkSchedule" applicableRootEntity="IfcWorkSchedule">
<Applicability>
<Template ref="93be5970-bf51-4f8e-aeb6-22db2ba3dd40" />
<TemplateRules operator="and">
</TemplateRules>
</Applicability>
<Concepts>
<Concept uuid="8d612617-ca34-4f6c-89c0-941c9c22c159" name="Property Sets">
<Template ref="f74255a6-0c0e-4f31-84ad-24981db62461" />
</Concept>
<Concept uuid="7d3a2554-87be-448a-8c5d-502e28be8812" name="Document">
<Template ref="7dadae9c-0026-44d3-ade7-9a843fe2ef0b" />
</Concept>
<Concept uuid="058508aa-8ef5-46c2-9c62-daf3cd1dead0" name="Control Assignment">
<Template ref="813e73fe-5641-4648-a680-8887cf4359f1" />
</Concept>
<Concept uuid="eb4d5c0c-6508-47d8-b3ed-670fb3adb0c6" name="Nesting">
<Template ref="38ca8788-5e47-411c-8294-d56f9e9a5691" />
</Concept>
<Concept uuid="46a5ad28-66dc-4e20-82d3-44fdef7131f6" name="Aggregation">
<Template ref="02eefcc6-b26c-4f20-9c7c-c30ae74eb9a9" />
</Concept>
</Concepts>
</ConceptRoot>
| # | Concept | Template | Model View |
|---|---|---|---|
| IfcRoot | |||
| Identity | Software Identity | General Usage | |
| Revision Control | Revision Control | General Usage | |
| IfcObjectDefinition | |||
| Classification Association | Classification Association | General Usage | |
| IfcObject | |||
| Object User Identity | Object User Identity | General Usage | |
| Object Predefined Type | Object Predefined Type | General Usage | |
| Object Typing | Object Typing | General Usage | |
| Property Sets with Override | Property Sets with Override | General Usage | |
| IfcWorkSchedule | |||
| Property Sets | Property Sets for Objects | General Usage | |
| Document | Document Association | General Usage | |
| Control Assignment | Control Assignment | General Usage | |
| Nesting | Object Nesting | General Usage | |
| Aggregation | Aggregation | General Usage | |
<xs:element name="IfcWorkSchedule" type="ifc:IfcWorkSchedule" substitutionGroup="ifc:IfcWorkControl" nillable="true"/>
<xs:complexType name="IfcWorkSchedule">
<xs:complexContent>
<xs:extension base="ifc:IfcWorkControl">
<xs:attribute name="PredefinedType" type="ifc:IfcWorkScheduleTypeEnum" use="optional"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
ENTITY IfcWorkSchedule
SUBTYPE OF (IfcWorkControl);
PredefinedType : OPTIONAL IfcWorkScheduleTypeEnum;
WHERE
CorrectPredefinedType : NOT(EXISTS(PredefinedType)) OR (PredefinedType <> IfcWorkScheduleTypeEnum.USERDEFINED) OR
((PredefinedType = IfcWorkScheduleTypeEnum.USERDEFINED) AND EXISTS(SELF\IfcObject.ObjectType));
END_ENTITY;
