IfcRelFillsElement

Natural language names
Element als Füllung einer Öffnung - Relation
Rel Fills Element
Relation de remplissage
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4 4.0.0.0
    IfcRelFillsElement
      OwnerHistoryMODIFIEDInstantiation changed to OPTIONAL.
IFC4 Addendum 2 4.0.2.0
    IfcRelFillsElement
      RelatingOpeningElementXMODIFIEDXsdformat changed from Attribute to Hidden.
IFC2x3 to IFC4 4.0.0.0
    IfcRelFillsElement
      OwnerHistoryMODIFIEDInstantiation changed to OPTIONAL.
IFC4 Addendum 2 4.0.2.0
    IfcRelFillsElement
      RelatingOpeningElementXMODIFIEDXsdformat changed from Attribute to Hidden.
Semantic definitions at the entity
Entity definition

IfcRelFillsElement is an objectified relationship between an opening element and an element that fills (or partially fills) the opening element. It is an one-to-one relationship.

NOTE  View definitions or implementer agreements may restrict an opening to be filled by one filling element only.

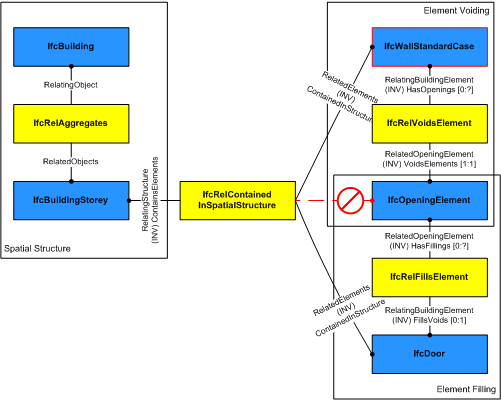

As shown in Figure 166, the insertion of a door into a wall is represented by two separate relationships. First the door opening is created within the wall by IfcWall(StandardCase) <-- IfcRelVoidsElement --> IfcOpeningElement, then the door is inserted within the opening by IfcOpeningElement <-- IfcRelFillsElement --> IfcDoor.



"relationships for filling"

Figure 166 — Relationships for element filling

HISTORY  New entity in IFC1.0

Attribute definitions
#AttributeTypeCardinalityDescription G
5RelatingOpeningElementIfcOpeningElement Opening Element being filled by virtue of this relationship. X
6RelatedBuildingElementIfcElement Reference to building element that occupies fully or partially the associated opening.
IFC2x CHANGE  The data type has been changed from IfcBuildingElement to IfcElement with upward compatibility for file based exchange.
X
Inherited definitions from supertypes
Entity inheritance IfcRelConnects IfcRelationship IfcRoot
Attribute inheritance
#AttributeTypeCardinalityDescriptionG
IfcRoot
1GlobalIdIfcGloballyUniqueId Assignment of a globally unique identifier within the entire software world. X
2OwnerHistoryIfcOwnerHistory? Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE  only the last modification in stored - either as addition, deletion or modification.
IFC4 CHANGE  The attribute has been changed to be OPTIONAL.
X
3NameIfcLabel? Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. X
4DescriptionIfcText? Optional description, provided for exchanging informative comments. X
IfcRelationship
IfcRelConnects
IfcRelFillsElement
5RelatingOpeningElementIfcOpeningElement Opening Element being filled by virtue of this relationship. X
6RelatedBuildingElementIfcElement Reference to building element that occupies fully or partially the associated opening.
IFC2x CHANGE  The data type has been changed from IfcBuildingElement to IfcElement with upward compatibility for file based exchange.
X
Definitions applying to General Usage

Concept inheritance

#ConceptTemplateModel View
IfcRoot
IdentitySoftware IdentityGeneral Usage
Revision ControlRevision ControlGeneral Usage
Formal representations
XML Specification
 <xs:element name="IfcRelFillsElement" type="ifc:IfcRelFillsElement" substitutionGroup="ifc:IfcRelConnects" nillable="true"/>
 <xs:complexType name="IfcRelFillsElement">
  <xs:complexContent>
   <xs:extension base="ifc:IfcRelConnects">
    <xs:sequence>
     <xs:element name="RelatedBuildingElement" type="ifc:IfcElement" nillable="true"/>
    </xs:sequence>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcRelFillsElement
 SUBTYPE OF (IfcRelConnects);
  RelatingOpeningElement : IfcOpeningElement;
  RelatedBuildingElement : IfcElement;
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram

References  References: IfcElement IfcOpeningElement
