IfcProjectedOrTrueLengthEnum

Natural language names
Projected Or True Length Enum
Semantic definitions at the type
Type definition

This enumeration type is needed for load definition and is only considered if the load values are given as global actions and if they define linear or planar loads (that is, one- or two-dimensionally distributed loads).

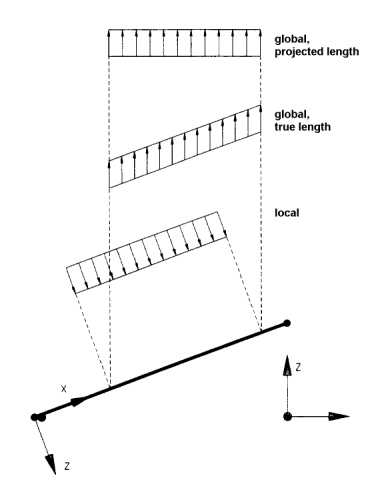

Figure 302 illustrates the interpretation of a load definition depending on the enumeration types IfcGlobalOrLocalEnum and IfcProjectedOrTrueLengthEnum.

HISTORY  New enumeration in IFC2x2.

"projected or true length"

Figure 302 — Projected or true length

Enumeration definition
ConstantDescription
PROJECTED_LENGTH
TRUE_LENGTH
Formal representations
XML Specification
 <xs:simpleType name="IfcProjectedOrTrueLengthEnum">
  <xs:restriction base="xs:string">
   <xs:enumeration value="projected_length"/>
   <xs:enumeration value="true_length"/>
  </xs:restriction>
 </xs:simpleType>
EXPRESS Specification
TYPE IfcProjectedOrTrueLengthEnum = ENUMERATION OF (
 PROJECTED_LENGTH,
 TRUE_LENGTH);
END_TYPE;

Link to EXPRESS-G diagram EXPRESS-G diagram

References  References: IfcStructuralCurveAction IfcStructuralSurfaceAction
