IfcStructuralCurveReaction

Natural language names
linienförmige Auflagerreaktion
Structural Curve Reaction
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4 4.0.0.0
    IfcStructuralCurveReactionADDED
IFC4x2 Candidate 4.2.0.0
    IfcStructuralCurveReaction
      PositionedRelativeToADDED
IFC2x3 to IFC4 4.0.0.0
    IfcStructuralCurveReactionADDED
IFC4x2 Candidate 4.2.0.0
    IfcStructuralCurveReaction
      PositionedRelativeToADDED
IFC4x2 to IFC4x3_RC1
    IfcStructuralCurveReaction
      ReferencedInStructuresADDED
Semantic definitions at the entity
Entity definition

This entity defines a reaction which occurs distributed over a curve. A curve reaction may be connected with a curve member or curve connection, or surface member or surface connection.

HISTORY  New entity in IFC4.

Coordinate Systems:

See definitions at IfcStructuralActivity.

Topology Use Definitions:

Standard Case:
If connected with a curve item, instances of IfcStructuralCurveRection shall not have an ObjectPlacement nor a Representation. It is implied that the placement and representation of the IfcStructuralActivity is the same as the ones of the member or connection.

Special Case:
If connected with a surface item, instances of IfcStructuralCurveReaction shall have an ObjectPlacement and Representation, containing an IfcEdgeCurve. See IfcStructuralActivity for further definitions.

Informal Propositions:

  1. If the curve reaction is of the predefined type CONST, SELF\IfcStructuralActivity.AppliedLoad must not be of type IfcStructuralLoadConfiguration.
  2. If the curve reaction is of the predefined type LINEAR, SELF\IfcStructuralActivity.AppliedLoad shall be of type IfcStructuralLoadConfiguration and shall contain two items.
  3. If the curve reaction is of the predefined type POLYGONAL, SELF\IfcStructuralActivity.AppliedLoad shall be of type IfcStructuralLoadConfiguration and shall contain three or more items.
  4. If the curve action is of the predefined type DISCRETE, SELF\IfcStructuralActivity.AppliedLoad shall be of type IfcStructuralLoadConfiguration and shall contain two or more items.
  5. In case of types LINEAR, POLYGONAL, and DISCRETE, the load items shall have one-dimensional IfcStructuralLoadConfiguration.Locations, defining the location of the result samples in local coordinates of the curve reaction. The load items shall be provided in ascending order according to their locations. The first and the last load item define the extent of the result distribution.
  6. If the curve reaction is of the predefined type EQUIDISTANT, SELF\IfcStructuralActivity.AppliedLoad shall be of type IfcStructuralLoadConfiguration and shall contain two or more items. IfcStructuralLoadConfiguration.Locations shall be omitted as it is implicit. The load items shall be provided in ascending order. The first and the last load item are located at the beginning and end of the result distribution, respectively.
  7. All items in SELF\IfcStructuralActivity.AppliedLoad\IfcStructuralLoadConfiguration.Values shall be of the same entity type.
Attribute definitions
#AttributeTypeCardinalityDescription G
10PredefinedTypeIfcStructuralCurveActivityTypeEnum Type of reaction according to its distribution of load values. X
Formal Propositions
RuleDescription
HasObjectTypeThe attribute ObjectType shall be given if the predefined type is set to USERDEFINED.
SuitablePredefinedTypeThe SINUS and PARABOLA distribution types are out of scope of structural curve reactions.
Inherited definitions from supertypes

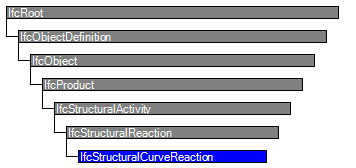

Entity inheritance IfcStructuralReaction IfcStructuralActivity IfcProduct IfcObject IfcObjectDefinition IfcRoot
Attribute inheritance
#AttributeTypeCardinalityDescriptionG
IfcRoot
1GlobalIdIfcGloballyUniqueId Assignment of a globally unique identifier within the entire software world. X
2OwnerHistoryIfcOwnerHistory? Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE  only the last modification in stored - either as addition, deletion or modification.
IFC4 CHANGE  The attribute has been changed to be OPTIONAL.
X
3NameIfcLabel? Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. X
4DescriptionIfcText? Optional description, provided for exchanging informative comments. X
IfcObjectDefinition
HasAssignmentsIfcRelAssigns
@RelatedObjects
S[0:?]Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. X
NestsIfcRelNests
@RelatedObjects
S[0:1]References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE  The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition.
X
IsNestedByIfcRelNests
@RelatingObject
S[0:?]References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).
IFC4 CHANGE  The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition.
X
HasContextIfcRelDeclares
@RelatedDefinitions
S[0:1]References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IFC4 CHANGE  The inverse attribute datatype has been added.
X
IsDecomposedByIfcRelAggregates
@RelatingObject
S[0:?]References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).
IFC4 CHANGE  The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.
X
DecomposesIfcRelAggregates
@RelatedObjects
S[0:1]References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE  The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.
X
HasAssociationsIfcRelAssociates
@RelatedObjects
S[0:?]Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. X
IfcObject
5ObjectTypeIfcLabel? The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED. X
IsDeclaredByIfcRelDefinesByObject
@RelatedObjects
S[0:1]Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE  New inverse relationship, change made with upward compatibility for file based exchange.
X
DeclaresIfcRelDefinesByObject
@RelatingObject
S[0:?]Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE  New inverse relationship, change made with upward compatibility for file based exchange.
X
IsTypedByIfcRelDefinesByType
@RelatedObjects
S[0:1]Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.
IFC4 CHANGE  New inverse relationship, the link to IfcRelDefinesByType had previously be included in the inverse relationship IfcRelDefines. Change made with upward compatibility for file based exchange.
X
IsDefinedByIfcRelDefinesByProperties
@RelatedObjects
S[0:?]Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.
IFC4 CHANGE  The data type has been changed from IfcRelDefines to IfcRelDefinesByProperties with upward compatibility for file based exchange.
X
IfcProduct
6ObjectPlacementIfcObjectPlacement? Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system. X
7RepresentationIfcProductRepresentation? Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement. X
ReferencedByIfcRelAssignsToProduct
@RelatingProduct
S[0:?]Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product. X
PositionedRelativeToIfcRelPositions
@RelatedProducts
S[0:1]X
ReferencedInStructuresIfcRelReferencedInSpatialStructure
@RelatedElements
S[0:?]X
IfcStructuralActivity
8AppliedLoadIfcStructuralLoad Load or result resource object which defines the load type, direction, and load values. In case of activities which are variably distributed over curves or surfaces, IfcStructuralLoadConfiguration is used which provides a list of load samples and their locations within the load distribution, measured in local coordinates of the curve or surface on which this activity acts. The contents of this load or result distribution may be further restricted by definitions at subtypes of IfcStructuralActivity. X
9GlobalOrLocalIfcGlobalOrLocalEnum Indicates whether the load directions refer to the global coordinate system (global to the analysis model, i.e. as established by IfcStructuralAnalysisModel.SharedPlacement) or to the local coordinate system (local to the activity or connected item, as established by an explicit or implied representation and its parameter space).
NOTE, the informal definition of IfcRepresentationResource.IfcGlobalOrLocalEnum doe s not distinguish between "global coordinate system" and "world coordinate system". On the other hand, this distinction is necessary in the IfcStructuralAnalysisDomain where the shared "global" coordinate system of an analysis model may very well not be the same as the project-wide world coordinate system.
NOTE  In the scope of IfcStructuralActivity.GlobalOrLocal, the meaning of GLOBAL_COORDS is therefore not to be taken as world coordinate system but as the analysis model specific shared coordinate system. In contrast, LOCAL_COORDS is to be taken as coordinates which are local to individual structural items and activities, as established by subclass-specific geometry use definitions.
X
AssignedToStructuralItemIfcRelConnectsStructuralActivity
@RelatedStructuralActivity
S[0:1]Reference to the IfcRelConnectsStructuralActivity relationship by which activities are connected with structural items. X
IfcStructuralReaction
IfcStructuralCurveReaction
10PredefinedTypeIfcStructuralCurveActivityTypeEnum Type of reaction according to its distribution of load values. X
Definitions applying to General Usage

 Instance diagram


Concept usage

Structural Activity

The Structural Activity concept template applies to this entity as shown in Table 643.

AppliedLoadRelatingElementDescription
IfcStructuralLoadConfigurationIfcStructuralCurveMemberResulting shear and moment along a curve member.

Table 643 — IfcStructuralCurveReaction Structural Activity



mvdXML Specification
<?xml version="1.0" encoding="utf-8"?>
<ConceptRoot xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" uuid="b27dfe36-f218-4483-8168-4f1c54efb98d" name="IfcStructuralCurveReaction" applicableRootEntity="IfcStructuralCurveReaction">
 <Applicability>
  <Template ref="0527b71d-fc0b-4fe4-85df-96a3cd799d16" />
  <TemplateRules operator="and">
  </TemplateRules>
 </Applicability>
 <Concepts>
  <Concept uuid="301077d6-1235-4aba-8c11-c03550a448fa" name="Structural Activity">
   <Template ref="9390ca72-d8e2-482b-9986-e0e1d15e7194" />
   <TemplateRules operator="and">
    <TemplateRule Description="Resulting shear and moment along a curve member." Parameters="AppliedLoad[Type]=&apos;IfcStructuralLoadConfiguration&apos; AND RelatingElement[Type]=&apos;IfcStructuralCurveMember&apos;" />
   </TemplateRules>
  </Concept>
 </Concepts>
</ConceptRoot>
Concept inheritance

#ConceptTemplateModel View
IfcRoot
IdentitySoftware IdentityGeneral Usage
Revision ControlRevision ControlGeneral Usage
IfcObjectDefinition
Classification AssociationClassification AssociationGeneral Usage
IfcObject
Object User IdentityObject User IdentityGeneral Usage
Object Predefined TypeObject Predefined TypeGeneral Usage
Object TypingObject TypingGeneral Usage
Property Sets for ObjectsProperty Sets for ObjectsGeneral Usage
Property Sets with OverrideProperty Sets with OverrideGeneral Usage
IfcProduct
Product PlacementProduct PlacementGeneral Usage
Product Geometric RepresentationProduct Geometric RepresentationGeneral Usage
IfcStructuralCurveReaction
Structural ActivityStructural ActivityGeneral Usage
Formal representations
XML Specification
 <xs:element name="IfcStructuralCurveReaction" type="ifc:IfcStructuralCurveReaction" substitutionGroup="ifc:IfcStructuralReaction" nillable="true"/>
 <xs:complexType name="IfcStructuralCurveReaction">
  <xs:complexContent>
   <xs:extension base="ifc:IfcStructuralReaction">
    <xs:attribute name="PredefinedType" type="ifc:IfcStructuralCurveActivityTypeEnum" use="optional"/>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcStructuralCurveReaction
 SUBTYPE OF (IfcStructuralReaction);
  PredefinedType : IfcStructuralCurveActivityTypeEnum;
 WHERE
  HasObjectType : (PredefinedType <> IfcStructuralCurveActivityTypeEnum.USERDEFINED) OR EXISTS(SELF\IfcObject.ObjectType);
  SuitablePredefinedType : (PredefinedType <> IfcStructuralCurveActivityTypeEnum.SINUS) AND (PredefinedType <> IfcStructuralCurveActivityTypeEnum.PARABOLA);
END_ENTITY;
