IfcStructuralLoadGroup

Natural language names
Lastgruppe / Lastkombination
Structural Load Group
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4 4.0.0.0
    IfcStructuralLoadGroup
      OwnerHistoryMODIFIEDInstantiation changed to OPTIONAL.
IFC2x3 to IFC4 4.0.0.0
    IfcStructuralLoadGroup
      OwnerHistoryMODIFIEDInstantiation changed to OPTIONAL.
Semantic definitions at the entity
Entity definition

The entity IfcStructuralLoadGroup is used to structure the physical impacts. By using the grouping features inherited from IfcGroup, instances of IfcStructuralAction (or its subclasses) and of IfcStructuralLoadGroup can be used to define load groups, load cases and load combinations. (See also IfcLoadGroupTypeEnum.)

NOTE  Important functionality for the description of a load-bearing system is derived from the existing IFC entity IfcGroup. This class provides, via the relationship class IfcRelAssignsToGroup, the needed grouping mechanism. In this way, instances of IfcStructuralAction belonging to a specific load group can be unambiguously determined.

NOTE  The relationship class IfcRelAssignsToGroupByFactor is used to group load cases into load combinations. The factor provided in this assignment relationship is to applied together with the optional IfcStructuralLoadGroup.Coefficient. Unlike this coefficient which always affects the load group, the IfcRelAssignsToGroupByFactor.Factor is specific for a load case—load combination pair. As many instances of IfcRelAssignsToGroupByFactor are used within one load combination as there are different _Factor_s to be applied to load cases in the load combination. On the other hand, a load case may appear in more than one load combination and can have a different Factor in each assignment by IfcRelAssignsToGroupByFactor.

HISTORY  New entity in IFC2x2.

IFC4 CHANGE  Subtype IfcStructuralLoadCase added. Informal propositions and WHERE rule added. Predefined type LOAD_COMBINATION_GROUP made obsolete and removed.

Informal Propositions:

  1. Load groups of type LOAD_GROUP shall only contain instances of IfcStructuralAction.
  2. Load groups of type LOAD_CASE shall always be instantiated from the subtype IfcStructuralLoadCase, not directly from the generic type IfcStructuralLoadGroup itself.
  3. Instances of IfcStructuralLoadCase shall only contain instances of IfcStructuralAction or/ and instances of IfcStructuralLoadGroup of type LOAD_GROUP.
  4. Load groups of type LOAD_COMBINATION shall only contain instances of IfcStructuralLoadCase.
Attribute definitions
#AttributeTypeCardinalityDescription G
6PredefinedTypeIfcLoadGroupTypeEnum Selects a predefined type for the load group. It can be differentiated between load groups, load cases, load combinations, or userdefined grouping levels. X
7ActionTypeIfcActionTypeEnum Type of actions in the group. Normally needed if 'PredefinedType' specifies a LOAD_CASE. X
8ActionSourceIfcActionSourceTypeEnum Source of actions in the group. Normally needed if 'PredefinedType' specifies a LOAD_CASE. X
9CoefficientIfcRatioMeasure? Load factor. If omitted, a factor is not yet known or not specified. A load factor of 1.0 shall be explicitly exported as Coefficient = 1.0. X
10PurposeIfcLabel? Description of the purpose of this instance. Among else, possible values of the Purpose of load combinations are 'SLS', 'ULS', 'ALS' to indicate serviceability, ultimate, or accidental limit state. X
SourceOfResultGroupIfcStructuralResultGroup
@ResultForLoadGroup
S[0:1]Results which were computed using this load group. X
LoadGroupForIfcStructuralAnalysisModel
@LoadedBy
S[0:?]Analysis models in which this load group is used. X
Formal Propositions
RuleDescription
HasObjectTypeThe attribute ObjectType shall be given if the predefined type, action type, or action source is set to USERDEFINED.
Inherited definitions from supertypes

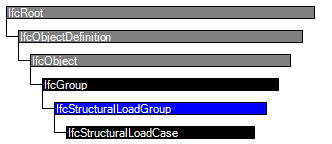

Entity inheritance IfcStructuralLoadCase IfcGroup IfcObject IfcObjectDefinition IfcRoot
Attribute inheritance
#AttributeTypeCardinalityDescriptionG
IfcRoot
1GlobalIdIfcGloballyUniqueId Assignment of a globally unique identifier within the entire software world. X
2OwnerHistoryIfcOwnerHistory? Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE  only the last modification in stored - either as addition, deletion or modification.
IFC4 CHANGE  The attribute has been changed to be OPTIONAL.
X
3NameIfcLabel? Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. X
4DescriptionIfcText? Optional description, provided for exchanging informative comments. X
IfcObjectDefinition
HasAssignmentsIfcRelAssigns
@RelatedObjects
S[0:?]Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. X
NestsIfcRelNests
@RelatedObjects
S[0:1]References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE  The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition.
X
IsNestedByIfcRelNests
@RelatingObject
S[0:?]References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).
IFC4 CHANGE  The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition.
X
HasContextIfcRelDeclares
@RelatedDefinitions
S[0:1]References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IFC4 CHANGE  The inverse attribute datatype has been added.
X
IsDecomposedByIfcRelAggregates
@RelatingObject
S[0:?]References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).
IFC4 CHANGE  The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.
X
DecomposesIfcRelAggregates
@RelatedObjects
S[0:1]References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE  The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.
X
HasAssociationsIfcRelAssociates
@RelatedObjects
S[0:?]Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. X
IfcObject
5ObjectTypeIfcLabel? The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED. X
IsDeclaredByIfcRelDefinesByObject
@RelatedObjects
S[0:1]Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE  New inverse relationship, change made with upward compatibility for file based exchange.
X
DeclaresIfcRelDefinesByObject
@RelatingObject
S[0:?]Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE  New inverse relationship, change made with upward compatibility for file based exchange.
X
IsTypedByIfcRelDefinesByType
@RelatedObjects
S[0:1]Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.
IFC4 CHANGE  New inverse relationship, the link to IfcRelDefinesByType had previously be included in the inverse relationship IfcRelDefines. Change made with upward compatibility for file based exchange.
X
IsDefinedByIfcRelDefinesByProperties
@RelatedObjects
S[0:?]Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.
IFC4 CHANGE  The data type has been changed from IfcRelDefines to IfcRelDefinesByProperties with upward compatibility for file based exchange.
X
IfcGroup
IsGroupedByIfcRelAssignsToGroup
@RelatingGroup
S[0:?]Reference to the relationship IfcRelAssignsToGroup that assigns the one to many group members to the IfcGroup object.
IFC4 CHANGE  The cardinality has been changed from 1..1 to 0..? in order to allow the exchange of a group concept without having already group members assigned. It now also allows the use of many instances of IfcRelAssignsToGroup to assign the group members. The change has been done with upward compatibility for file based exchange.
X
IfcStructuralLoadGroup
6PredefinedTypeIfcLoadGroupTypeEnum Selects a predefined type for the load group. It can be differentiated between load groups, load cases, load combinations, or userdefined grouping levels. X
7ActionTypeIfcActionTypeEnum Type of actions in the group. Normally needed if 'PredefinedType' specifies a LOAD_CASE. X
8ActionSourceIfcActionSourceTypeEnum Source of actions in the group. Normally needed if 'PredefinedType' specifies a LOAD_CASE. X
9CoefficientIfcRatioMeasure? Load factor. If omitted, a factor is not yet known or not specified. A load factor of 1.0 shall be explicitly exported as Coefficient = 1.0. X
10PurposeIfcLabel? Description of the purpose of this instance. Among else, possible values of the Purpose of load combinations are 'SLS', 'ULS', 'ALS' to indicate serviceability, ultimate, or accidental limit state. X
SourceOfResultGroupIfcStructuralResultGroup
@ResultForLoadGroup
S[0:1]Results which were computed using this load group. X
LoadGroupForIfcStructuralAnalysisModel
@LoadedBy
S[0:?]Analysis models in which this load group is used. X
Definitions applying to General Usage

 Instance diagram


Concept usage

Group Assignment

The Group Assignment concept template applies to this entity as shown in Table 645.

IsGroupedRelatedObjectsDescription
Structural load cases applicable to the load group.

Table 645 — IfcStructuralLoadGroup Group Assignment



mvdXML Specification
<?xml version="1.0" encoding="utf-8"?>
<ConceptRoot xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" uuid="f953e693-6413-4286-a55e-637b0ec873d5" name="IfcStructuralLoadGroup" applicableRootEntity="IfcStructuralLoadGroup">
 <Applicability>
  <Template ref="e01bfc4d-e751-4e91-9120-d9226ce9d768" />
  <TemplateRules operator="and">
  </TemplateRules>
 </Applicability>
 <Concepts>
  <Concept uuid="8eb1bed2-79af-48bc-957d-404413429522" name="Group Assignment">
   <Template ref="f567967f-5493-44d9-ac51-937c09ac2583" />
   <TemplateRules operator="and">
    <TemplateRule Description="Structural load cases applicable to the load group." />
   </TemplateRules>
  </Concept>
 </Concepts>
</ConceptRoot>
Concept inheritance

#ConceptTemplateModel View
IfcRoot
IdentitySoftware IdentityGeneral Usage
Revision ControlRevision ControlGeneral Usage
IfcObjectDefinition
Classification AssociationClassification AssociationGeneral Usage
IfcObject
Object User IdentityObject User IdentityGeneral Usage
Object Predefined TypeObject Predefined TypeGeneral Usage
Object TypingObject TypingGeneral Usage
Property Sets for ObjectsProperty Sets for ObjectsGeneral Usage
Property Sets with OverrideProperty Sets with OverrideGeneral Usage
IfcStructuralLoadGroup
Group AssignmentGroup AssignmentGeneral Usage
Formal representations
XML Specification
 <xs:element name="IfcStructuralLoadGroup" type="ifc:IfcStructuralLoadGroup" substitutionGroup="ifc:IfcGroup" nillable="true"/>
 <xs:complexType name="IfcStructuralLoadGroup">
  <xs:complexContent>
   <xs:extension base="ifc:IfcGroup">
    <xs:attribute name="PredefinedType" type="ifc:IfcLoadGroupTypeEnum" use="optional"/>
    <xs:attribute name="ActionType" type="ifc:IfcActionTypeEnum" use="optional"/>
    <xs:attribute name="ActionSource" type="ifc:IfcActionSourceTypeEnum" use="optional"/>
    <xs:attribute name="Coefficient" type="ifc:IfcRatioMeasure" use="optional"/>
    <xs:attribute name="Purpose" type="ifc:IfcLabel" use="optional"/>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcStructuralLoadGroup
 SUPERTYPE OF(IfcStructuralLoadCase)
 SUBTYPE OF (IfcGroup);
  PredefinedType : IfcLoadGroupTypeEnum;
  ActionType : IfcActionTypeEnum;
  ActionSource : IfcActionSourceTypeEnum;
  Coefficient : OPTIONAL IfcRatioMeasure;
  Purpose : OPTIONAL IfcLabel;
 INVERSE
  SourceOfResultGroup : SET [0:1] OF IfcStructuralResultGroup FOR ResultForLoadGroup;
  LoadGroupFor : SET [0:?] OF IfcStructuralAnalysisModel FOR LoadedBy;
 WHERE
  HasObjectType : (
(PredefinedType <> IfcLoadGroupTypeEnum.USERDEFINED) AND
(ActionType <> IfcActionTypeEnum.USERDEFINED) AND
(ActionSource <> IfcActionSourceTypeEnum.USERDEFINED)
) OR EXISTS(SELF\IfcObject.ObjectType);
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram

References  References: IfcStructuralAnalysisModel IfcStructuralResultGroup
