IfcProjectionElement

Definition from IAI: The IfcProjectionElement is a specialization of the general feature element to represent projections applied to building elements. It represents a solid attached to any element that has physical manifestation. Projections must be handled by all sectors and disciplines in AEC/FM industry, therefore the interoperability for opening elements is provided at this high level.

EXAMPLE: A wall projection such as a pilaster strip is handled by IfcProjectionElement

An IfcProjectionElement has to be inserted into a building element (all subtypes of IfcBuildingElement) by using the IfcRelProjectsElement relationship. It is also directly linked to the spatial structure of the project (and here normally to the IfcBuildingStorey) by using the IfcRelContainedInSpatialStructure relationship.

HISTORY New entity in Release IFC2x Edition 2.

Geometry Use Definitions:

The geometric representation of IfcProjectionElement is given by the IfcProductDefinitionShape and IfcLocalPlacement allowing multiple geometric representations.

Local Placement

The local placement for IfcOpeningRecess is defined in its supertype IfcProduct. It is defined by the IfcLocalPlacement, which defines the local coordinate system that is referenced by all geometric representations.

The PlacementRelTo relationship of IfcLocalPlacement should point to the local placement of the same element, which is voided by the opening, i.e. referred to by ProjectsElement.RelatingBuildingElement.

Swept Solid Representation

The geometric representation of IfcProjectionElement is defined using the swept area solid geometry. The attribute RepresentationType of IfcShapeRepresentation should have the value 'SweptSolid'. The RepresentationIdentifier of IfcShapeRepresentation should then have the value 'Body'. The following additional constraints apply to the swept solid representation:

Solid: IfcExtrudedAreaSolid is required.
Profile: IfcRectangleProfileDef, IfcCircleProfileDef and IfcArbitraryClosedProfileDef shall be supported.
Extrusion: The profile shall be extruded horizontally (i.e. perpendicular to the extrusion direction of the modified element), e.g. for wall projections, or vertically (i.e. in the extrusion direction of the projected element), e.g., for floor projections.

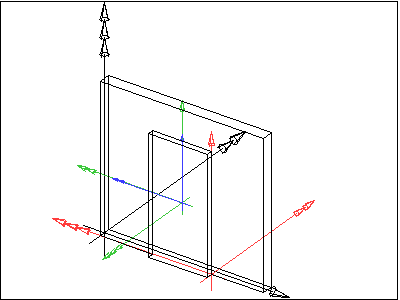

EXAMPLE

The following interpretation of dimension parameter applies for rectangular projection:

IfcRectangleProfileDef.YDim interpreted as projection width
IfcRectangleProfileDef.XDim interpreted as projection height
IfcExtrudedAreaSolid.Depth is interpreted as projection depth

NOTE: Rectangles are now defined centric, the placement location has to be set:

IfcCartesianPoint(XDim/2,YDim/2)

NOTE: The local placement directions for the IfcProjectionElement are only given as an example, other directions are valid as well.

Brep Representation

The general b-rep geometric representation of IfcProjectionElement is defined using the Brep geometry. The Brep representation allows for the representation of complex element shape. It is ensured by assigning the value 'Brep' to the RepresentationType attribute of IfcShapeRepresentation The RepresentationIdentifier of IfcShapeRepresentation should then have the value 'Body'.

EXPRESS specification:

ENTITY IfcProjectionElement

SUBTYPE OF (

IfcFeatureElementAddition);

END_ENTITY;

Inheritance graph

ENTITY IfcProjectionElement;

ENTITY IfcRoot;

GlobalId

IfcGloballyUniqueId;

OwnerHistory

IfcOwnerHistory;

Name

OPTIONAL IfcLabel;

Description

OPTIONAL IfcText;

ENTITY IfcObjectDefinition;

INVERSE

HasAssignments

SET OF IfcRelAssigns FOR RelatedObjects;

IsDecomposedBy

SET OF IfcRelDecomposes FOR RelatingObject;

Decomposes

SET [0:1] OF IfcRelDecomposes FOR RelatedObjects;

HasAssociations

SET OF IfcRelAssociates FOR RelatedObjects;

ENTITY IfcObject;

ObjectType

OPTIONAL IfcLabel;

INVERSE

IsDefinedBy

SET OF IfcRelDefines FOR RelatedObjects;

ENTITY IfcProduct;

ObjectPlacement

OPTIONAL IfcObjectPlacement;

Representation

OPTIONAL IfcProductRepresentation;

INVERSE

ReferencedBy

SET OF IfcRelAssignsToProduct FOR RelatingProduct;

ENTITY IfcElement;

Tag

OPTIONAL IfcIdentifier;

INVERSE

FillsVoids

SET [0:1] OF IfcRelFillsElement FOR RelatedBuildingElement;

ConnectedTo

SET OF IfcRelConnectsElements FOR RelatingElement;

HasCoverings

SET OF IfcRelCoversBldgElements FOR RelatingBuildingElement;

HasProjections

SET OF IfcRelProjectsElement FOR RelatingElement;

HasStructuralMember

SET OF IfcRelConnectsStructuralElement FOR RelatingElement;

ReferencedInStructures

SET OF IfcRelReferencedInSpatialStructure FOR RelatedElements;

HasPorts

SET OF IfcRelConnectsPortToElement FOR RelatedElement;

HasOpenings

SET OF IfcRelVoidsElement FOR RelatingBuildingElement;

IsConnectionRealization

SET OF IfcRelConnectsWithRealizingElements FOR RealizingElements;

ProvidesBoundaries

SET OF IfcRelSpaceBoundary FOR RelatedBuildingElement;

ConnectedFrom

SET OF IfcRelConnectsElements FOR RelatedElement;

ContainedInStructure

SET [0:1] OF IfcRelContainedInSpatialStructure FOR RelatedElements;

ENTITY IfcFeatureElement;

ENTITY IfcFeatureElementAddition;

INVERSE

ProjectsElements

IfcRelProjectsElement FOR RelatedFeatureElement;

ENTITY IfcProjectionElement;

END_ENTITY;
