IfcRectangleProfileDef

Definition from IAI: The IfcRectangleProfileDef defines a rectangle as the profile definition used by the swept surface geometry or the swept area solid. It is given by its X extent and its Y extent, and placed within the 2D position coordinate system, established by the Position attribute. It is placed centric within the position coordinate system.

HISTORY: New class in IFC Release 1.5. The use definition has changed in IFC Release 2x.

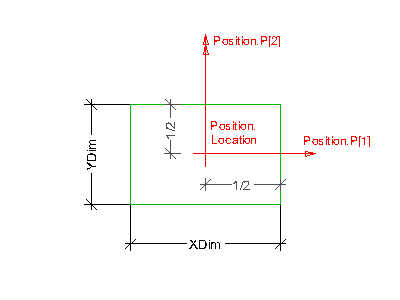

Illustration:

Position
The parameterized profile defines its own position coordinate system. The underlying coordinate system is defined by the swept surface or swept area solid that uses the profile definition. It is the xy plane of either:

IfcSweptSurface.Position
IfcSweptAreaSolid.Position

or in case of sectioned spines the xy plane of each list member of IfcSectionedSpine.CrossSectionPositions.

By using offsets of the position location, the parameterized profile can be positioned centric (using x,y offsets = 0.), or at any position relative to the profile. Explicit coordinate offsets are used to define cardinal points (e.g. upper-left bound).

Parameter
The IfcRectangleProfileDef is defined within the position coordinate system, where the XDim defines the length measure for the length of the rectangle (half along the positive x-axis) and the YDim defines the length measure for the width of the rectangle (half along the positive y-axis).

Table: Parameter of rectangle profile definition

EXPRESS specification:

ENTITY IfcRectangleProfileDef

SUPERTYPE OF

(ONEOF(IfcRectangleHollowProfileDef, IfcRoundedRectangleProfileDef))

SUBTYPE OF (

IfcParameterizedProfileDef);

XDim

IfcPositiveLengthMeasure;

YDim

IfcPositiveLengthMeasure;

END_ENTITY;

Attribute definitions:

XDim	:	The extent of the rectangle in the direction of the x-axis.
YDim	:	The extent of the rectangle in the direction of the y-axis.

Inheritance graph

ENTITY IfcRectangleProfileDef;

ENTITY IfcProfileDef;

ProfileType

IfcProfileTypeEnum;

ProfileName

OPTIONAL IfcLabel;

ENTITY IfcParameterizedProfileDef;

Position

IfcAxis2Placement2D;

ENTITY IfcRectangleProfileDef;

XDim

IfcPositiveLengthMeasure;

YDim

IfcPositiveLengthMeasure;

END_ENTITY;
