IfcTrapeziumProfileDef

Definition from IAI: The IfcTrapeziumProfileDef defines a trapezium as the profile definition used by the swept surface geometry or the swept area solid. It is given by its Top X and Bottom X extent and its Y extent as well as by the offset of the Top X extend, and placed within the 2D position coordinate system, established by the Position attribute. It is placed centric within the position coordinate system, i.e. in the center of the bounding box.

HISTORY: New class in IFC Release 1.5. The use definition has changed in IFC Release 2x.

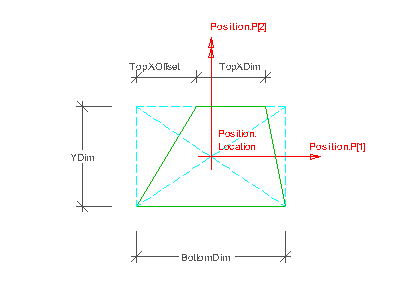

Illustration:
trapezium profile Position
The parameterized profile defines its own position coordinate system. The underlying coordinate system is defined by the swept surface or swept area solid that uses the profile definition. It is the xy plane of either:
  • IfcSweptSurface.Position
  • IfcSweptAreaSolid.Position
or in case of sectioned spines the xy plane of each list member of IfcSectionedSpine.CrossSectionPositions.

By using offsets of the position location, the parameterized profile can be positioned centric (using x,y offsets = 0.), or at any position relative to the profile. Explicit coordinate offsets are used to define cardinal points (e.g. upper-left bound).

Parameter
The IfcTrapeziumProfileDef is defined within the position coordinate system, where the BottomDim defines the length measure for the bottom line (half along the positive x-axis) and the YDim defines the length measure for the parallel distance of bottom and top line (half along the positive y-axis). The top line starts with a distance of TopXOffset from [-BottomLine/2,YDim] (which can be negative, zero, or positive) and has a length of TopXDim along the positive x-axis.

Table: Parameter of trapezium profile definition

EXPRESS specification:

ENTITY IfcTrapeziumProfileDef
SUBTYPE OF ( IfcParameterizedProfileDef);
BottomXDim  :  IfcPositiveLengthMeasure;
TopXDim  :  IfcPositiveLengthMeasure;
YDim  :  IfcPositiveLengthMeasure;
TopXOffset  :  IfcLengthMeasure;
END_ENTITY;

Attribute definitions:

BottomXDim  :  The extent of the bottom line measured along the implicit x-axis.
TopXDim  :  The extent of the top line measured along the implicit x-axis.
YDim  :  The extent of the distance between the parallel bottom and top lines measured along the implicit y-axis.
TopXOffset  :  Offset from the beginning of the top line to the bottom line, measured along the implicit x-axis.

Inheritance graph

ENTITY IfcTrapeziumProfileDef;
ENTITY IfcProfileDef;
ProfileType  :  IfcProfileTypeEnum;
ProfileName  :  OPTIONAL IfcLabel;
ENTITY IfcParameterizedProfileDef;
Position  :  IfcAxis2Placement2D;
ENTITY IfcTrapeziumProfileDef;
BottomXDim  :  IfcPositiveLengthMeasure;
TopXDim  :  IfcPositiveLengthMeasure;
YDim  :  IfcPositiveLengthMeasure;
TopXOffset  :  IfcLengthMeasure;
END_ENTITY;
