IfcPreDefinedTerminatorSymbol

Definition from IAI: The pre defined terminator symbol is a pre defined symbol for the purpose to identify a terminator by name. Allowable names are:

'blanked arrow',
'blanked box',
'blanked dot',
'dimension origin',
'filled arrow',
'filled box',
'filled dot',
'integral symbol',
'open arrow',
'slash',
'unfilled arrow'

NOTE: The IfcPreDefinedTerminatorSymbol is an entity that had been adopted from ISO 10303, Industrial automation systems and integration—Product data representation and exchange, Part 202: Application protocol: Associative draughting.

NOTE Corresponding STEP name: pre_defined_terminator_symbol. Please refer to ISO/IS 10303-202:1994 page 209 for the final definition of the formal standard.

HISTORY New entity in Release IFC2x 2nd Edition.

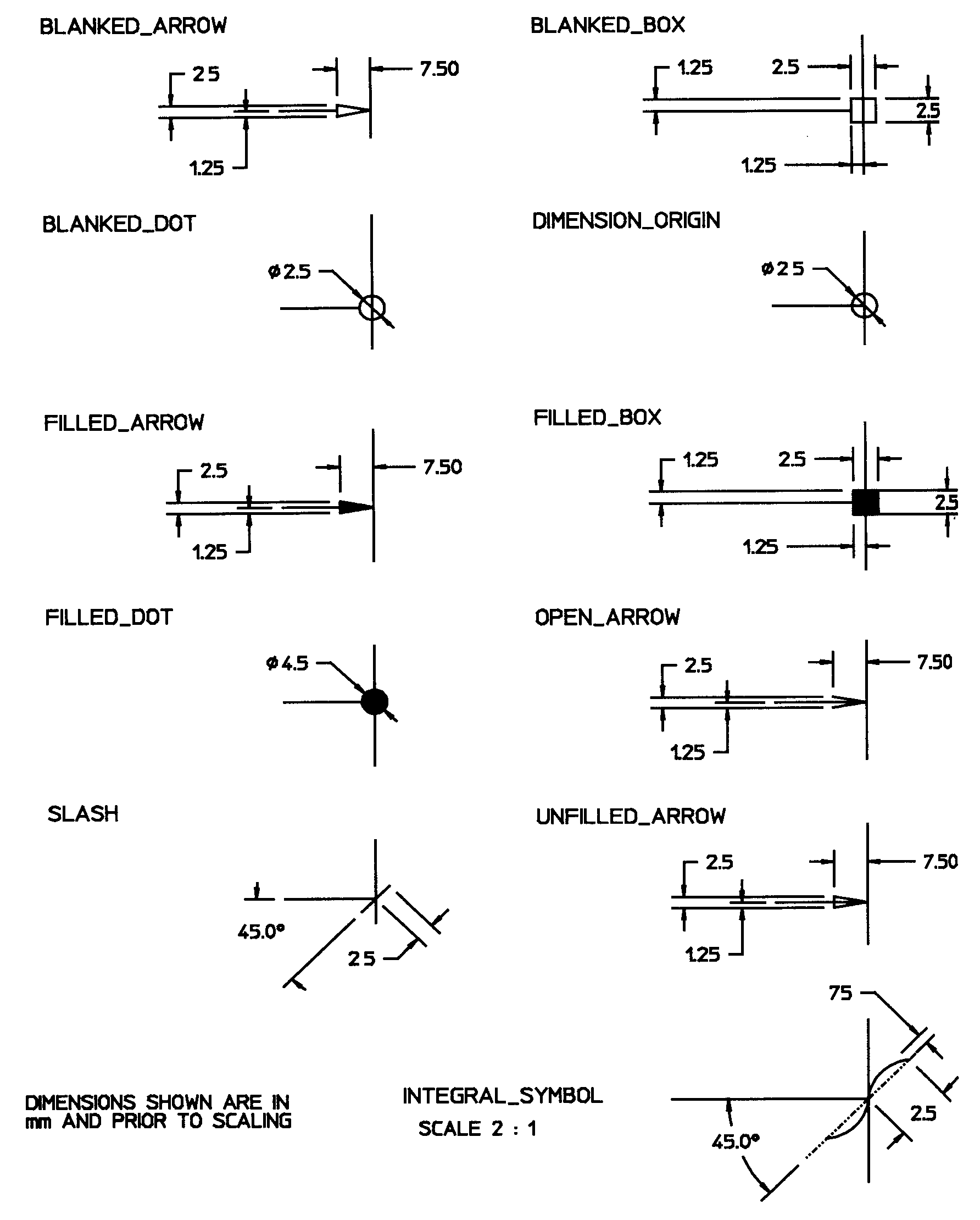

Illustration from ISO 10303-202, page 212:

EXPRESS specification:

ENTITY IfcPreDefinedTerminatorSymbol

SUBTYPE OF (

IfcPreDefinedSymbol);

WHERE

WR31

SELF\IfcPreDefinedItem.Name IN ['blanked arrow','blanked box', 'blanked dot','dimension origin','filled arrow','filled box', 'filled dot','integral symbol','open arrow','slash','unfilled arrow'];

END_ENTITY;

Formal Propositions:

WR31

The inherited name for pre defined items shall only have the value of one of the following words.

Inheritance graph

ENTITY IfcPreDefinedTerminatorSymbol;

ENTITY IfcPreDefinedItem;

Name

IfcLabel;

ENTITY IfcPreDefinedSymbol;

ENTITY IfcPreDefinedTerminatorSymbol;

END_ENTITY;
