IfcProjectionCurve

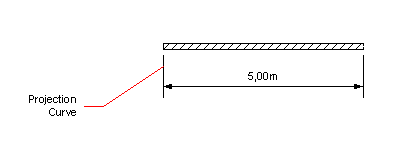

Definition from IAI: A projection curve is an annotated curve within a dimension that points to a point of the product shape that is measured.

NOTE: The IfcProjectionCurve is an entity that had been adopted from ISO 10303, Industrial automation systems and integration—Product data representation and exchange, Part 101: Integrated application resources: Draughting.

NOTE Corresponding STEP name: projection_curve. Please refer to ISO/IS 10303-101:1994 page 18 for the final definition of the formal standard.

HISTORY New entity in Release IFC2x 2nd Edition.

EXPRESS specification:

ENTITY IfcProjectionCurve

SUBTYPE OF (

IfcAnnotationCurveOccurrence);

END_ENTITY;

Inheritance graph

ENTITY IfcProjectionCurve;

ENTITY IfcRepresentationItem;

INVERSE

LayerAssignments

SET OF IfcPresentationLayerAssignment FOR AssignedItems;

StyledByItem

SET [0:1] OF IfcStyledItem FOR Item;

ENTITY IfcStyledItem;

Item

OPTIONAL IfcRepresentationItem;

Styles

SET [1:?] OF IfcPresentationStyleAssignment;

Name

OPTIONAL IfcLabel;

ENTITY IfcAnnotationOccurrence;

ENTITY IfcAnnotationCurveOccurrence;

ENTITY IfcProjectionCurve;

END_ENTITY;
