IfcRadiusDimension

Definition from IAI: The radial dimension is a draughting callout that presents the radial length of a conic element. It consists of a dimension curve and may have projection curves (but is often defined without projection curves).

NOTE: The dimension text is handled throught the IfcStructuredDimensionCallout and associated via the IfcDimensionCalloutRelationship.

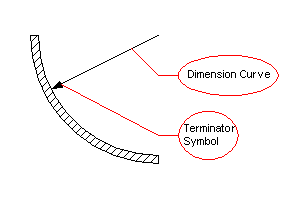

Illustration:

NOTE: The IfcRadiusDimension is an entity that had been adopted from ISO 10303, Industrial automation systems and integration—Product data representation and exchange, Part 202: Application protocol: Associative draughting.

NOTE Corresponding STEP name: radius_dimension. Please refer to ISO/IS 10303-202:1994 for the final definition of the formal standard.

HISTORY New entity in Release IFC2x 2nd Edition.

EXPRESS specification:

ENTITY IfcRadiusDimension

SUBTYPE OF (

IfcDimensionCurveDirectedCallout);

END_ENTITY;

Inheritance graph

ENTITY IfcRadiusDimension;

ENTITY IfcRepresentationItem;

INVERSE

LayerAssignments

SET OF IfcPresentationLayerAssignment FOR AssignedItems;

StyledByItem

SET [0:1] OF IfcStyledItem FOR Item;

ENTITY IfcGeometricRepresentationItem;

ENTITY IfcDraughtingCallout;

Contents

SET [1:?] OF IfcDraughtingCalloutElement;

INVERSE

IsRelatedFromCallout

SET OF IfcDraughtingCalloutRelationship FOR RelatedDraughtingCallout;

IsRelatedToCallout

SET OF IfcDraughtingCalloutRelationship FOR RelatingDraughtingCallout;

ENTITY IfcDimensionCurveDirectedCallout;

ENTITY IfcRadiusDimension;

END_ENTITY;
