IfcTransitionCurveSegment2D

Natural language names
Transition Curve Segment 2D
Change log
ItemSPFXMLChangeDescription
IFC4x1 Final 4.1.0.0
    IfcTransitionCurveSegment2DADDED
IFC4x2 Candidate 4.2.0.0
    IfcTransitionCurveSegment2D
      PositioningElementADDED
IFC4x1 Final 4.1.0.0
    IfcTransitionCurveSegment2DADDED
IFC4x2 Candidate 4.2.0.0
    IfcTransitionCurveSegment2D
      PositioningElementADDED
IFC4x2 to IFC4x3_RC1
    IfcTransitionCurveSegment2D
      PositioningElementMODIFIEDAggregation changed from NONE to SET.
Semantic definitions at the entity
Entity definition

An IfcTransitionCurveSegment2D is a curve that transitions between a straight line and a circular arc (or the reverse).

Attribute definitions
#AttributeTypeCardinalityDescription G
4StartRadiusIfcPositiveLengthMeasure? The radius of the curve at the start point. If the radius is not provided by a value, i.e. being “NIL” it is interpreted as INFINITE – the StartPoint is at the point, where it does not have a curvature. X
5EndRadiusIfcPositiveLengthMeasure? The radius of the curve at the end point. If the radius is not provided by a value, i.e. being “NIL” it is interpreted as INFINITE – the end point is at the point, where it does not have a curvature. X
6IsStartRadiusCCWIfcBoolean Indication of the curve starting counter-clockwise or clockwise. The orientation of the curve is IsCcw=”true”, if the spiral arc goes counter-clockwise as seen from the start point and start direction, or “to the left", and with IsCcw=”false” if the spiral arc goes clockwise, or “to the right”. X
7IsEndRadiusCCWIfcBoolean Indication of the curve ending counter-clockwise or clockwise. The orientation of the clothoidal arc is IsCcw=”true”, if the spiral arc goes counter-clockwise as seen towards the end point and end direction, or “to the left", and with IsCcw=”false” if the spiral arc goes clockwise, or “to the right”. X
8TransitionCurveTypeIfcTransitionCurveType Indicates the specific type of transition curve. X
Inherited definitions from supertypes

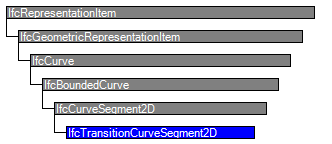

Entity inheritance IfcCurveSegment2D IfcBoundedCurve IfcCurve IfcGeometricRepresentationItem IfcRepresentationItem
Attribute inheritance
#AttributeTypeCardinalityDescriptionG
IfcRepresentationItem
LayerAssignmentIfcPresentationLayerAssignment
@AssignedItems
S[0:1]Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items.
IFC2x3 CHANGE  The inverse attribute LayerAssignments has been added.
IFC4 CHANGE  The inverse attribute LayerAssignment has been restricted to max 1. Upward compatibility for file based exchange is guaranteed.
X
StyledByItemIfcStyledItem
@Item
S[0:1]Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve.
IFC2x3 CHANGE  The inverse attribute StyledByItem has been added.
X
IfcGeometricRepresentationItem
IfcCurve
Dim
:=IfcCurveDim(SELF)
IfcDimensionCountThe space dimensionality of this abstract class, defined differently for all subtypes, i.e. for IfcLine, IfcConic and IfcBoundedCurve. X
IfcBoundedCurve
PositioningElementIfcLinearPositioningElement
@Axis
? S[0:1]X
IfcCurveSegment2D
1StartPointIfcCartesianPoint The start point of the 2D curve as x/y coordinates defined by a 2D Cartesian point. X
2StartDirectionIfcPlaneAngleMeasure The direction of the tangent at the start point. Direction value 0. indicates a curve with a start tangent along the positive x-axis. Values increases counter-clockwise, and decreases clockwise. Depending on the plane angle unit, either degree or radians, the sensible range is -360° ≤ n ≤ 360° (or -2π ≤ n ≤ 2π). Values larger then a full circle (>|360°| or >|2 π| shall not be used. X
3SegmentLengthIfcPositiveLengthMeasure The length along the curve X
IfcTransitionCurveSegment2D
4StartRadiusIfcPositiveLengthMeasure? The radius of the curve at the start point. If the radius is not provided by a value, i.e. being “NIL” it is interpreted as INFINITE – the StartPoint is at the point, where it does not have a curvature. X
5EndRadiusIfcPositiveLengthMeasure? The radius of the curve at the end point. If the radius is not provided by a value, i.e. being “NIL” it is interpreted as INFINITE – the end point is at the point, where it does not have a curvature. X
6IsStartRadiusCCWIfcBoolean Indication of the curve starting counter-clockwise or clockwise. The orientation of the curve is IsCcw=”true”, if the spiral arc goes counter-clockwise as seen from the start point and start direction, or “to the left", and with IsCcw=”false” if the spiral arc goes clockwise, or “to the right”. X
7IsEndRadiusCCWIfcBoolean Indication of the curve ending counter-clockwise or clockwise. The orientation of the clothoidal arc is IsCcw=”true”, if the spiral arc goes counter-clockwise as seen towards the end point and end direction, or “to the left", and with IsCcw=”false” if the spiral arc goes clockwise, or “to the right”. X
8TransitionCurveTypeIfcTransitionCurveType Indicates the specific type of transition curve. X
Formal representations
XML Specification
 <xs:element name="IfcTransitionCurveSegment2D" type="ifc:IfcTransitionCurveSegment2D" substitutionGroup="ifc:IfcCurveSegment2D" nillable="true"/>
 <xs:complexType name="IfcTransitionCurveSegment2D">
  <xs:complexContent>
   <xs:extension base="ifc:IfcCurveSegment2D">
    <xs:attribute name="StartRadius" type="ifc:IfcPositiveLengthMeasure" use="optional"/>
    <xs:attribute name="EndRadius" type="ifc:IfcPositiveLengthMeasure" use="optional"/>
    <xs:attribute name="IsStartRadiusCCW" type="ifc:IfcBoolean" use="optional"/>
    <xs:attribute name="IsEndRadiusCCW" type="ifc:IfcBoolean" use="optional"/>
    <xs:attribute name="TransitionCurveType" type="ifc:IfcTransitionCurveType" use="optional"/>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcTransitionCurveSegment2D
 SUBTYPE OF (IfcCurveSegment2D);
  StartRadius : OPTIONAL IfcPositiveLengthMeasure;
  EndRadius : OPTIONAL IfcPositiveLengthMeasure;
  IsStartRadiusCCW : IfcBoolean;
  IsEndRadiusCCW : IfcBoolean;
  TransitionCurveType : IfcTransitionCurveType;
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
