IfcCircleHollowProfileDef

Definition from IAI: The IfcCircleHollowProfileDef defines a section profile that provides the defining parameters of a circular hollow section (tube) to be used by the swept area solid. Its parameters and orientation relative to the position coordinate system are according to the following illustration.The centre of the position coordinate system is in the profile's centre of the bounding box (for symmetric profiles identical with the centre of gravity).

HISTORY: New entity in Release IFC2x Edition 2.

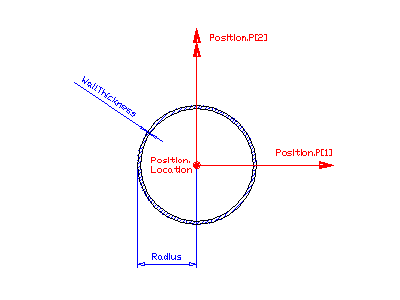

Illustration:

Position The parameterized profile defines its own position coordinate system. The underlying coordinate system is defined by the swept area solid that uses the profile definition. It is the xy plane of: IfcSweptAreaSolid.Position by using offsets of the position location, the parameterized profile can be positioned centric (using x,y offsets = 0.), or at any position relative to the profile. Explicit coordinate offsets are used to define cardinal points (e.g. upper-left bound). Parameter The parameterized profile is defined by a set of parameter attributes, see attribute definition below.

Table: Parameters of circular hollow profile definition

EXPRESS specification:

Attribute definitions:

Formal Propositions:

Inheritance graph
