IfcCircleProfileDef

Definition from IAI: The IfcCircleProfileDef defines a circle as the profile definition used by the swept surface geometry or by the swept area solid. It is given by its Radius attribute and placed within the 2D position coordinate system, established by the Position attribute.

HISTORY: New class in IFC Release 1.5.

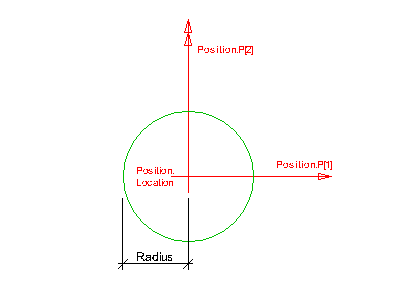

Illustration:

Position
The parameterized profile defines its own position coordinate system. The underlying coordinate system is defined by the swept surface or swept area solid that uses the profile definition. It is the xy plane of either:

IfcSweptSurface.Position
IfcSweptAreaSolid.Position

or in case of sectioned spines the xy plane of each list member of IfcSectionedSpine.CrossSectionPositions.

By using offsets of the position location, the parameterized profile can be positioned centric (using x,y offsets = 0.), or at any position relative to the profile. Explicit coordinate offsets are used to define cardinal points (e.g. upper-left bound).

Parameter
The Position attribute defines the 2D position coordinate system of the circle.
The Radius attribute defines the radius of the circle.

Table: Parameter for circle profile definition

EXPRESS specification:

ENTITY IfcCircleProfileDef

SUPERTYPE OF

(IfcCircleHollowProfileDef)

SUBTYPE OF (

IfcParameterizedProfileDef);

Radius

IfcPositiveLengthMeasure;

END_ENTITY;

Attribute definitions:

Radius

The radius of the circle.

Inheritance graph

ENTITY IfcCircleProfileDef;

ENTITY IfcProfileDef;

ProfileType

IfcProfileTypeEnum;

ProfileName

OPTIONAL IfcLabel;

ENTITY IfcParameterizedProfileDef;

Position

IfcAxis2Placement2D;

ENTITY IfcCircleProfileDef;

Radius

IfcPositiveLengthMeasure;

END_ENTITY;
