IfcDoor

Natural language names
Tür
Door
Porte
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4 4.0.0.0
    IfcDoor
      OwnerHistoryMODIFIEDInstantiation changed to OPTIONAL.
      PredefinedTypeADDED
      OperationTypeADDED
      UserDefinedOperationTypeADDED
IFC4x2 Candidate 4.2.0.0
    IfcDoor
      PositionedRelativeToADDED
IFC2x3 to IFC4 4.0.0.0
    IfcDoor
      OwnerHistoryMODIFIEDInstantiation changed to OPTIONAL.
      PredefinedTypeADDED
      OperationTypeADDED
      UserDefinedOperationTypeADDED
IFC4x2 Candidate 4.2.0.0
    IfcDoor
      PositionedRelativeToADDED
Semantic definitions at the entity
Entity definition

The door is a built element that is predominately used to provide controlled access for people, goods, animals and vehicles. It includes constructions with hinged, pivoted, sliding, and additionally revolving and folding operations. REMOVE: A door consists of a lining and one or several panels.
NOTE Definition according to ISO 6707-1: construction for closing an opening, intended primarily for access with hinged, pivoted or sliding operation.
The IfcDoor defines a particular occurrence of a door inserted in the spatial context of a project. A door can:

This specification provides two entities for door occurrences:

The actual parameters of the door and/or its shape are defined by the IfcDoor as the occurrence definition (or project instance), or by the IfcDoorType as the specific definition (or project type). The following parameters are given:
at the IfcDoor or IfcDoorStandardCase for occurrence specific parameters. The IfcDoor specifies:

at the IfcDoorType, to which the IfcDoor is related by the inverse relationship IsTypedBy pointing to IfcRelDefinesByType, for type parameters common to all occurrences of the same type.

The geometric representation of IfcDoor is given by the IfcProductDefinitionShape, allowing multiple geometric representations. The IfcDoor may get its parameter and shape from the IfcDoorType. If an IfcRepresentationMap (a block definition) is defined for the IfcDoorType, then the IfcDoor inserts it through the IfcMappedItem.
The geometric representation of IfcDoor is defined using the following (potentially multiple) IfcShapeRepresentation''s for its IfcProductDefinitionShape:

In addition the parametric representation of a (limited) door shape is available by applying the parameters from IfcDoorType referencing IfcDoorLiningProperties and IfcDoorPanelProperties. The purpose of the parameter is described at those entities and below (door opening operation by door type).
The overall size of the IfcDoor to be used to apply the lining or panel parameter provided by the IfcDoorType is determined by the IfcShapeRepresentation with the RepresentationIdentifier = ''Profile''.

Attribute definitions
#AttributeTypeCardinalityDescription G
9OverallHeightIfcPositiveLengthMeasure? Overall measure of the height, it reflects the Z Dimension of a bounding box, enclosing the body of the door opening. If omitted, the OverallHeight should be taken from the geometric representation of the IfcOpening in which the door is inserted. NOTE The body of the door might be taller then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallHeight shall still be given as the door opening height, and not as the total height of the door lining. X
10OverallWidthIfcPositiveLengthMeasure? Overall measure of the width, it reflects the X Dimension of a bounding box, enclosing the body of theE door opening. If omitted, the OverallWidth should be taken from the geometric representation of the IfcOpening in which the door is inserted. NOTE The body of the door might be wider then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallWidth shall still be given as the door opening width, and not as the total width of the door lining. X
11PredefinedTypeIfcDoorTypeEnum? X
12OperationTypeIfcDoorTypeOperationEnum? Type defining the general layout and operation of the door type in terms of the partitioning of panels and panel operations. NOTE The OperationType shall only be used, if no type object IfcDoorType is assigned, providing its own IfcDoorType.OperationType. X
13UserDefinedOperationTypeIfcLabel? Designator for the user defined operation type, shall only be provided, if the value of OperationType is set to USERDEFINED. X
Formal Propositions
RuleDescription
CorrectStyleAssignedEither there is no door type object associated, i.e. the IsTypedBy inverse relationship is not provided, or the associated type object has to be of type IfcDoorType.
NOTEnbsp; The deprecated type IfcDoorStyle is still included for backward compatibility reasons.
Inherited definitions from supertypes

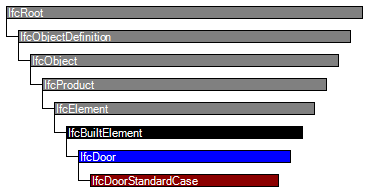

Entity inheritance IfcDoorStandardCase IfcBuiltElement IfcElement IfcProduct IfcObject IfcObjectDefinition IfcRoot
Attribute inheritance
#AttributeTypeCardinalityDescriptionG
IfcRoot
1GlobalIdIfcGloballyUniqueId Assignment of a globally unique identifier within the entire software world. X
2OwnerHistoryIfcOwnerHistory? Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE  only the last modification in stored - either as addition, deletion or modification.
IFC4 CHANGE  The attribute has been changed to be OPTIONAL.
X
3NameIfcLabel? Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. X
4DescriptionIfcText? Optional description, provided for exchanging informative comments. X
IfcObjectDefinition
HasAssignmentsIfcRelAssigns
@RelatedObjects
S[0:?]Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. X
NestsIfcRelNests
@RelatedObjects
S[0:1]References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE  The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition.
X
IsNestedByIfcRelNests
@RelatingObject
S[0:?]References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).
IFC4 CHANGE  The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition.
X
HasContextIfcRelDeclares
@RelatedDefinitions
S[0:1]References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IFC4 CHANGE  The inverse attribute datatype has been added.
X
IsDecomposedByIfcRelAggregates
@RelatingObject
S[0:?]References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).
IFC4 CHANGE  The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.
X
DecomposesIfcRelAggregates
@RelatedObjects
S[0:1]References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE  The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.
X
HasAssociationsIfcRelAssociates
@RelatedObjects
S[0:?]Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. X
IfcObject
5ObjectTypeIfcLabel? The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED. X
IsDeclaredByIfcRelDefinesByObject
@RelatedObjects
S[0:1]Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE  New inverse relationship, change made with upward compatibility for file based exchange.
X
DeclaresIfcRelDefinesByObject
@RelatingObject
S[0:?]Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE  New inverse relationship, change made with upward compatibility for file based exchange.
X
IsTypedByIfcRelDefinesByType
@RelatedObjects
S[0:1]Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.
IFC4 CHANGE  New inverse relationship, the link to IfcRelDefinesByType had previously be included in the inverse relationship IfcRelDefines. Change made with upward compatibility for file based exchange.
X
IsDefinedByIfcRelDefinesByProperties
@RelatedObjects
S[0:?]Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.
IFC4 CHANGE  The data type has been changed from IfcRelDefines to IfcRelDefinesByProperties with upward compatibility for file based exchange.
X
IfcProduct
6ObjectPlacementIfcObjectPlacement? Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system. X
7RepresentationIfcProductRepresentation? Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement. X
ReferencedByIfcRelAssignsToProduct
@RelatingProduct
S[0:?]Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product. X
PositionedRelativeToIfcRelPositions
@RelatedProducts
S[0:1]X
ReferencedInStructuresIfcRelReferencedInSpatialStructure
@RelatedElements
S[0:?]X
IfcElement
8TagIfcIdentifier? The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level. X
FillsVoidsIfcRelFillsElement
@RelatedBuildingElement
S[0:1]Reference to the IfcRelFillsElement Relationship that puts the element as a filling into the opening created within another element. X
ConnectedToIfcRelConnectsElements
@RelatingElement
S[0:?]Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to. X
IsInterferedByElementsIfcRelInterferesElements
@RelatedElement
S[0:?]Reference to the interference relationship to indicate the element that is interfered. The relationship, if provided, indicates that this element has an interference with one or many other elements.
NOTE  There is no indication of precedence between IsInterferedByElements and InterferesElements.
IFC4 CHANGE New inverse relationship.
X
InterferesElementsIfcRelInterferesElements
@RelatingElement
S[0:?]Reference to the interference relationship to indicate the element that interferes. The relationship, if provided, indicates that this element has an interference with one or many other elements.
NOTE  There is no indication of precedence between IsInterferedByElements and InterferesElements.
IFC4 CHANGE New inverse relationship.
X
HasProjectionsIfcRelProjectsElement
@RelatingElement
S[0:?]Projection relationship that adds a feature (using a Boolean union) to the IfcBuildingElement. X
HasOpeningsIfcRelVoidsElement
@RelatingBuildingElement
S[0:?]Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated. X
IsConnectionRealizationIfcRelConnectsWithRealizingElements
@RealizingElements
S[0:?]Reference to the connection relationship with realizing element. The relationship, if provided, assigns this element as the realizing element to the connection, which provides the physical manifestation of the connection relationship. X
ProvidesBoundariesIfcRelSpaceBoundary
@RelatedBuildingElement
S[0:?]Reference to space boundaries by virtue of the objectified relationship IfcRelSpaceBoundary. It defines the concept of an element bounding spaces. X
ConnectedFromIfcRelConnectsElements
@RelatedElement
S[0:?]Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element. X
ContainedInStructureIfcRelContainedInSpatialStructure
@RelatedElements
S[0:1]Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierachical, i.e. an element may only be assigned directly to zero or one spatial structure. X
HasCoveringsIfcRelCoversBldgElements
@RelatingBuildingElement
S[0:?]Reference to IfcCovering by virtue of the objectified relationship IfcRelCoversBldgElement. It defines the concept of an element having coverings associated. X
IfcBuiltElement
IfcDoor
9OverallHeightIfcPositiveLengthMeasure? Overall measure of the height, it reflects the Z Dimension of a bounding box, enclosing the body of the door opening. If omitted, the OverallHeight should be taken from the geometric representation of the IfcOpening in which the door is inserted. NOTE The body of the door might be taller then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallHeight shall still be given as the door opening height, and not as the total height of the door lining. X
10OverallWidthIfcPositiveLengthMeasure? Overall measure of the width, it reflects the X Dimension of a bounding box, enclosing the body of theE door opening. If omitted, the OverallWidth should be taken from the geometric representation of the IfcOpening in which the door is inserted. NOTE The body of the door might be wider then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallWidth shall still be given as the door opening width, and not as the total width of the door lining. X
11PredefinedTypeIfcDoorTypeEnum? X
12OperationTypeIfcDoorTypeOperationEnum? Type defining the general layout and operation of the door type in terms of the partitioning of panels and panel operations. NOTE The OperationType shall only be used, if no type object IfcDoorType is assigned, providing its own IfcDoorType.OperationType. X
13UserDefinedOperationTypeIfcLabel? Designator for the user defined operation type, shall only be provided, if the value of OperationType is set to USERDEFINED. X
Definitions applying to General Usage

 Instance diagram


Concept usage

Door Attributes

The Door Attributes concept applies to this entity.

The opening direction is determined by the local placement of IfcDoor and the OperationType of the IfcDoorType as shown in Figure 217.

NOTE  There are different definitions in various countries on what a left opening or left hung or left swing door is (same for right). Therefore the IFC definition may derivate from the local standard and need to be mapped appropriately.

Opening directions Definitions Reference to other standards
fig 1 The door panel (for swinging doors) opens always into the direction of the positive Y axis of the local placement. The determination of whether the door opens to the left or to the right is done at the level of the IfcDoorType. Here it is a left side opening door given by IfcDoorType.OperationType = SingleSwingLeft refered to as LEFT HAND (LH) in US *

refered to as DIN-R (right hung) in Germany
fig 2 If the door should open to the other side, then the local placement has to be changed. It is still a left side opening door, given by IfcDoorType.OperationType = SingleSwingLeft refered to as RIGHT HAND REVERSE (RHR) in US *

refered to as DIN-R (right hung) in Germany
fig 3 If the door panel (for swinging doors) opens to the right, a separate door style needs to be used (here IfcDoorTypee.OperationType = SingleSwingRight) and it always opens into the direction of the positive Y axis of the local placement. refered to as RIGHT HAND (RH) in US *

refered to as DIN-L (left hung) in Germany
fig 4 If the door panel (for swinging doors) opens to the right, and into the opposite directions, the local placement of the door need to change. The door style is given by IfcDoorType.OperationType = SingleSwingRight. refered to as LEFT HAND REVERSE (LHR) in US *

refered to as DIN-L (left hung) in Germany
* it assumes that the 'inside/private/primary' space is above (top in the pictures) and the 'outside/public/secondary' space is below (bottom in the pictures).

Figure 217 — Door swing

NOTE  The OverallWidth and OverallHeight parameters are for informational purpose only.



Object Typing

The Object Typing concept template applies to this entity as shown in Table 133.

HasTypeRelatingTypeDescription
IfcDoorType
IfcDoorStyle
NOTE This type is deprecated

Table 133 — IfcDoor Object Typing



Property Sets for Objects

The Property Sets for Objects concept template applies to this entity as shown in Table 134.

PsetNameProperties
Pset_DoorCommon
TemplatePropertyNameValueReference
Single ValueReferenceIfcIdentifier
Single ValueFireRatingIfcLabel
Single ValueAcousticRatingIfcLabel
Single ValueSecurityRatingIfcLabel
Single ValueDurabilityRatingIfcLabel
Single ValueHygrothermalRatingIfcLabel
Single ValueIsExternalIfcBoolean
Single ValueInfiltrationIfcVolumetricFlowRateMeasure
Single ValueThermalTransmittanceIfcThermalTransmittanceMeasure
Single ValueGlazingAreaFractionIfcPositiveRatioMeasure
Single ValueHandicapAccessibleIfcBoolean
Single ValueFireExitIfcBoolean
Single ValueHasDriveIfcBoolean
Single ValueSelfClosingIfcBoolean
Single ValueSmokeStopIfcBoolean
Single ValueWaterTightnessRatingIfcLabel
Single ValueMechanicalLoadRatingIfcLabel
Single ValueWindLoadRatingIfcLabel
Enumerated ValueStatusIfcLabel
Pset_DoorWindowGlazingType
TemplatePropertyNameValue
Single ValueGlassLayersIfcCountMeasure
Single ValueGlassThickness1IfcPositiveLengthMeasure
Single ValueGlassThickness2IfcPositiveLengthMeasure
Single ValueGlassThickness3IfcPositiveLengthMeasure
Single ValueFillGasIfcLabel
Single ValueGlassColorIfcLabel
Single ValueIsTemperedIfcBoolean
Single ValueIsLaminatedIfcBoolean
Single ValueIsCoatedIfcBoolean
Single ValueIsWiredIfcBoolean
Single ValueVisibleLightReflectanceIfcNormalisedRatioMeasure
Single ValueVisibleLightTransmittanceIfcNormalisedRatioMeasure
Single ValueSolarAbsorptionIfcNormalisedRatioMeasure
Single ValueSolarReflectanceIfcNormalisedRatioMeasure
Single ValueSolarTransmittanceIfcNormalisedRatioMeasure
Single ValueSolarHeatGainTransmittanceIfcNormalisedRatioMeasure
Single ValueShadingCoefficientIfcNormalisedRatioMeasure
Single ValueThermalTransmittanceSummerIfcThermalTransmittanceMeasure
Single ValueThermalTransmittanceWinterIfcThermalTransmittanceMeasure

Table 134 — IfcDoor Property Sets for Objects



Quantity Sets

The Quantity Sets concept template applies to this entity as shown in Table 135.

QsetNameQuantities
Qto_DoorBaseQuantities

Table 135 — IfcDoor Quantity Sets



Material Constituent Set

The Material Constituent Set concept template applies to this entity as shown in Table 136.

Description
Indicates that the material constituent applies to the door lining.

Table 136 — IfcDoor Material Constituent Set

The material of the IfcDoor is defined by the IfcMaterialConstituentSet or as fall back by IfcMaterial and attached by the IfcRelAssociatesMaterial relationship.



Product Local Placement

The Product Local Placement concept template applies to this entity as shown in Table 137.

Table 137 — IfcDoor Product Local Placement

The following restriction is imposed:

  1. The PlacementRelTo relationship of IfcLocalPlacement shall point to the local placement of the same element (if given), in which the IfcDoor is used as a filling (normally an IfcOpeningElement), as provided by the IfcRelFillsElement relationship;
  2. If the IfcDoor is part of an assembly, e.g. an IfcCurtainWall, then the PlacementRelTo relationship of IfcLocalPlacement shall point (if given) to the local placement of that assembly;
  3. If the IfcDoor is not inserted into an IfcOpeningElement, then the PlacementRelTo relationship of IfcLocalPlacement shall point (if given) to the local placement of the same IfcSpatialStructureElement that is used in the ContainedInStructure inverse attribute or to a referenced spatial structure element at a higher level.

NOTE  The product placement is used to determine the opening direction of the door.



Profile 3D Geometry

The Profile 3D Geometry concept applies to this entity.

The door profile is represented by a three-dimensional closed curve within a particular shape representation. The profile is used to apply the parameter of the parametric door representation. Only a single closed curve shall be contained in the set of IfcShapeRepresentation.Items.

A 'Profile' representation has to be provided if a parametric representation is applied to the door.



Spatial Containment

The Spatial Containment concept template applies to this entity as shown in Table 138.

RelatingStructureDescription
IfcBuildingStoreyDefault spatial container
IfcBuildingSpatial container for the element if it cannot be assigned to a building storey
IfcSiteSpatial container for the element in case that it is placed on site (outside of building)
IfcSpaceIn particular use cases, a door maybe assigned directly to space

Table 138 — IfcDoor Spatial Containment

The IfcDoor, as any subtype of IfcBuildingElement, may participate alternatively in one of the two different containment relationships:

The IfcDoor may also be connected to the IfcOpeningElement in which it is placed as a filler. In this case, the spatial containment relationship shall be provided, see Figure 218.

Containment
NOTE  The containment shall be defined independently of the filling relationship, that is, even if

the IfcDoor is a filling of an opening established by IfcRelFillsElement, it is also contained in the spatial structure by IfcRelContainedInSpatialStructure.

Figure 218 — Door spatial containment




mvdXML Specification
<?xml version="1.0" encoding="utf-8"?>
<ConceptRoot xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" uuid="cfa0c4e5-b786-478c-9d60-1455913bdfac" name="IfcDoor" applicableRootEntity="IfcDoor">
 <Applicability>
  <Template ref="d2278787-a9a5-4b89-b6cb-d0cf9613610a" />
  <TemplateRules operator="and">
  </TemplateRules>
 </Applicability>
 <Concepts>
  <Concept uuid="c172cb11-5adc-46ff-b037-57ae10dc1bc0" name="Door Attributes">
   <Template ref="1e5da429-cf7c-4f23-8b32-53ad98e238ad" />
  </Concept>
  <Concept uuid="5c1fbcff-488b-45cf-ae71-350eb5fef64d" name="Object Typing">
   <Template ref="35a2e10e-20df-40f4-ab2f-dacf0a6744f4" />
   <TemplateRules operator="and">
    <TemplateRule Parameters="RelatingType[Type]=&apos;IfcDoorType&apos;" />
    <TemplateRule Description="&gt; NOTE&amp;nbsp;This type is deprecated" Parameters="RelatingType[Type]=&apos;IfcDoorStyle&apos;" />
   </TemplateRules>
  </Concept>
  <Concept uuid="0100dbf6-8637-4961-bb6a-ae856ccbba2d" name="Property Sets for Objects">
   <Template ref="f74255a6-0c0e-4f31-84ad-24981db62461" />
   <TemplateRules operator="and">
    <TemplateRule Parameters="PsetName[Value]=&apos;Pset_DoorCommon&apos;" />
    <TemplateRule Parameters="PsetName[Value]=&apos;Pset_DoorWindowGlazingType&apos;" />
   </TemplateRules>
  </Concept>
  <Concept uuid="41fd9f98-bfc2-4d16-a509-82c85c2240f7" name="Quantity Sets">
   <Template ref="6652398e-6579-4460-8cb4-26295acfacc7" />
   <TemplateRules operator="and">
    <TemplateRule Parameters="QsetName[Value]=&apos;Qto_DoorBaseQuantities&apos;" />
   </TemplateRules>
  </Concept>
  <Concept uuid="75a2e6d9-24bc-47a8-b944-934666ba6aa2" name="Material Constituent Set">
   <Template ref="d96f7f7d-e742-4db8-9b5d-18a36a6df884" />
   <TemplateRules operator="and">
    <TemplateRule Description="Indicates that the material constituent applies to the door lining." />
    <TemplateRule Description="Indicates that the material constituent applies to the door panel(s); if not provided, the &apos;Lining&apos; material information applies to panel(s) as well." />
    <TemplateRule Description="Indicates that the material constituent applies to the glazing part." />
   </TemplateRules>
  </Concept>
  <Concept uuid="5c0a2329-04ad-489f-b1ff-0ec1f6eccae2" name="Product Local Placement">
   <Template ref="cbe85b5f-7912-4a43-8bb7-1e63bf40b26d" />
  </Concept>
  <Concept uuid="5abb68db-3de6-4ef4-b0d7-4d78bb986a8c" name="Profile 3D Geometry">
   <Template ref="1d897220-740d-4793-9a8d-5d2774c7bc00" />
  </Concept>
  <Concept uuid="f3a3befd-278f-4a46-96f2-7d3344e5acb3" name="Spatial Containment">
   <Template ref="d9a3f822-0014-4bc2-8d94-9d9067759045" />
   <TemplateRules operator="and">
    <TemplateRule Description="Default spatial container" Parameters="RelatingStructure[Type]=&apos;IfcBuildingStorey&apos;" />
    <TemplateRule Description="Spatial container for the element if it cannot be assigned to a building storey" Parameters="RelatingStructure[Type]=&apos;IfcBuilding&apos;" />
    <TemplateRule Description="Spatial container for the element in case that it is placed on site (outside of building)" Parameters="RelatingStructure[Type]=&apos;IfcSite&apos;" />
    <TemplateRule Description="In particular use cases, a door maybe assigned directly to space" Parameters="RelatingStructure[Type]=&apos;IfcSpace&apos;" />
   </TemplateRules>
  </Concept>
 </Concepts>
</ConceptRoot>
Concept inheritance

#ConceptTemplateModel View
IfcRoot
IdentitySoftware IdentityGeneral Usage
Revision ControlRevision ControlGeneral Usage
IfcObjectDefinition
Classification AssociationClassification AssociationGeneral Usage
IfcObject
Object User IdentityObject User IdentityGeneral Usage
Object Predefined TypeObject Predefined TypeGeneral Usage
Property Sets with OverrideProperty Sets with OverrideGeneral Usage
IfcProduct
Product PlacementProduct PlacementGeneral Usage
Product Geometric RepresentationProduct Geometric RepresentationGeneral Usage
IfcElement
CoG GeometryCoG GeometryGeneral Usage
Box GeometryBox GeometryGeneral Usage
FootPrint GeometryFootPrint GeometryGeneral Usage
Body SurfaceOrSolidModel GeometryBody SurfaceOrSolidModel GeometryGeneral Usage
Body SurfaceModel GeometryBody SurfaceModel GeometryGeneral Usage
Body Tessellation GeometryBody Tessellation GeometryGeneral Usage
Body Brep GeometryBody Brep GeometryGeneral Usage
Body AdvancedBrep GeometryBody AdvancedBrep GeometryGeneral Usage
Body CSG GeometryBody CSG GeometryGeneral Usage
Mapped GeometryMapped GeometryGeneral Usage
Element VoidingElement VoidingGeneral Usage
Element ProjectingElement ProjectingGeneral Usage
Linear PlacementProduct Linear PlacementGeneral Usage
IfcBuiltElement
Product AssignmentProduct AssignmentGeneral Usage
Surface 3D GeometrySurface 3D GeometryGeneral Usage
IfcDoor
Door AttributesDoor AttributesGeneral Usage
Object TypingObject TypingGeneral Usage
Property Sets for ObjectsProperty Sets for ObjectsGeneral Usage
Quantity SetsQuantity SetsGeneral Usage
Material Constituent SetMaterial Constituent SetGeneral Usage
Product Local PlacementProduct Local PlacementGeneral Usage
Profile 3D GeometryProfile 3D GeometryGeneral Usage
Spatial ContainmentSpatial ContainmentGeneral Usage
Formal representations
XML Specification
 <xs:element name="IfcDoor" type="ifc:IfcDoor" substitutionGroup="ifc:IfcBuiltElement" nillable="true"/>
 <xs:complexType name="IfcDoor">
  <xs:complexContent>
   <xs:extension base="ifc:IfcBuiltElement">
    <xs:attribute name="OverallHeight" type="ifc:IfcPositiveLengthMeasure" use="optional"/>
    <xs:attribute name="OverallWidth" type="ifc:IfcPositiveLengthMeasure" use="optional"/>
    <xs:attribute name="PredefinedType" type="ifc:IfcDoorTypeEnum" use="optional"/>
    <xs:attribute name="OperationType" type="ifc:IfcDoorTypeOperationEnum" use="optional"/>
    <xs:attribute name="UserDefinedOperationType" type="ifc:IfcLabel" use="optional"/>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcDoor
 SUPERTYPE OF(IfcDoorStandardCase)
 SUBTYPE OF (IfcBuiltElement);
  OverallHeight : OPTIONAL IfcPositiveLengthMeasure;
  OverallWidth : OPTIONAL IfcPositiveLengthMeasure;
  PredefinedType : OPTIONAL IfcDoorTypeEnum;
  OperationType : OPTIONAL IfcDoorTypeOperationEnum;
  UserDefinedOperationType : OPTIONAL IfcLabel;
 WHERE
  CorrectStyleAssigned : (SIZEOF(IsTypedBy) = 0)
OR ('IFCSHAREDBLDGELEMENTS.IfcDoorType' IN TYPEOF(SELF\IfcObject.IsTypedBy[1].RelatingType));
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram

Link to this page  Link to this page
